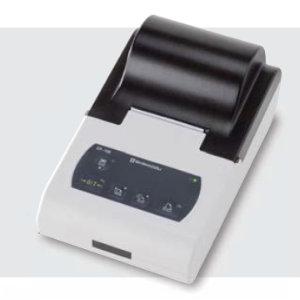

Printers (EP-110/EP-100)


Your Location: Main > Equipment > Balance

Built-In Clock

Enables printing time and date information even with a balance that doesn’t have a clock function.

Enhanced Support for ISO/GLP

EP-100 can output time/signature information. In addition to this information, EP-110 can output other information based on your demands together with measured values. See samples below for details.

OLED Dot Matrix Display (EP-110 only)

Offers easy-to-read, brightly illuminated OLED display.

Automatically Set

Automatically sets the appropriate communication with a balance. An operator doesn’t have to worry about its setting.

EP-110 Provides further applications

  • Pipette calibration
    Calibrate capacity of pipette and flask
  • User-defined calculation
    Operator can set coefficients
    (handy for converting result to local unit)
  • Tare/Net/Gross weight printing
    Print out Tare/Net/Gross weight separately
  • SUM mode
    Print out the total values of samples
  • Averaging mode
    Print out the average of samples
  • Formulation mode
    Print out each sample’s weight independently when blending samples
  • Comparator mode
    Print out result whether weight of sample is within target range
  • Interval printing mode
    Print out current weight at a regular interval
Model EP-100 EP-110
Display OLED 128 x 64 Dot Matrix Display
Protected Date Setting Prevents unintended changes of time and date setting.
Printing

Method: 8-pin reciprocating impact dot matrix

Speed:
Approx. 1.7 lines/sec. Printer head life;
1 million linesCharacter size;
Approx. W1.7 mm × H2.6 mm.
Interface RS-232 DB9
Power Supply

AC adapter:
Input 100 to 240 V AC, 50/60 Hz; Output 12 V DC /1500 mA

Power consumption:
8 W (while printing)Standby power
0.5 W (when not printing)
Installation Environment Temperature 5 to 45 °C, humidity 10 to 80 % No condensation
Compatible balance models AU, AT, UW/A95:C102UX, TW/TX, TXB, BW-K/BX-K, ELB, AW/AX/AY series, MOC63u
