Major products: Temperature Control Instruments

Product categories:

  • Water Baths
  • Shaking Water Baths
  • Refrigerated Circulators
  • Heating Circulator
  • Recirculating Coolers / Chillers
  • Highly Dynamic Temperature Control System
  • Bath Fluid

Welcome to the JULABO product finder

JULABO has the matching equipment for a wide variety of temperature applications.
This product finder enables you to quickly and easily gain an overview of possible solutions by JULABO.

Website: https://www.julabo.com/en/productfinder

Case Study

The case studies describe how JULABO temperature control instruments handle various applications. The documents are available in PDF format.

Website: https://www.julabo.com/en/downloads/case-studies

Heating Immersion Circulators

with attachment clamp for any bath tank up to 50 liters filling volume

JULABO immersion circulators for controlling temperature in any bath tank up to 50 liters. These units are equipped with a bath attachment clamp for wall thicknesses up to 26 mm. Alternatively, the circulator may be fastened to a laboratory stand. The clamp makes it easy to install the circulator onto an existing bath tank. Parts that are immersed in bath liquid are constructed of high quality stainless steel or synthetic material. Common applications include controlling the temperature of samples, temperature testing of food or luxury articles, materials testing, and evaluation, adjustment, and calibration or thermometers and thermal switches.

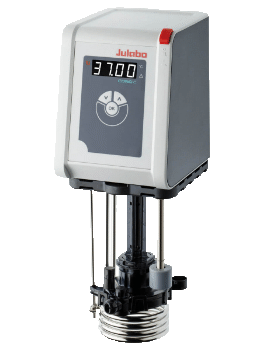

The new generation of laboratory circulators

The CORIO C Immersion Circulator is the basic model of the CORIO circulator portfolio. The bath attachment clamp is included in delivery and facilitates mounting of the circulator on any bath tank up to 30 liters.

Your advantages

  • Precise temperature control
  • For internal standard applications
  • For bath tanks with a max. filling volume of 30 liters
  • Bright, white, easy to read display
  • Very quiet
  • Easy operation
  • Class I (NFL) according to DIN 12876-1
Order No. 9011000
Model CORIO C
Category Heating Immersion Circulators
Working temperature range (°C) +20 ... +100
Temperature stability (°C) ±0.03
Setting / display resolution 0.01 – 0.1 °C
Temperature Display LED
Heating capacity (kW) 2
Circulation capacity flow rate (l/min) 6
Circulation capacity pressure (bar) 0.1
Ambient temperature 5...40 °C
Dimensions W x L x H (cm) 13.2 x 16 x 36.2
Weight (kg) 1.9
Cooling coil optional
Usable immersion depth (cm) 16.6

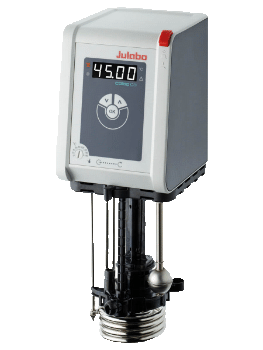

The new generation of laboratory circulators

In addition to the advantages of the CORIO C Circulator, the CORIO CD Immersion Circulator can be equipped with an optional pump set for temperature control of external applications.

Your advantages

  • Precise temperature control
  • For internal and external applications (accessories required)
  • For bath tanks with a max. filling volume of 50 liters
  • Bright, white, easy to read display
  • Very quiet
  • Easy operation
  • Easy pump change-over between internal and external circulation
  • USB connection
  • Class III (FL) according to DIN 12876-1
Order No. 9012000
Model CORIO CD
Category Heating Immersion Circulators
Working temperature range (°C) +20 ... +150
Temperature stability (°C) ±0.03
Setting / display resolution 0.01 – 0.1 °C
Temperature Display LED
Heating capacity (kW) 2
Pump capacity flow rate (l/min) 15
Pump capacity flow pressure (bar) 0.35
Ambient temperature 5...40 °C
Dimensions W x L x H (cm) 13.2 x 16 x 36.2
Weight (kg) 2.6
Cooling coil optional
Usable immersion depth (cm) 16.6

Laboratory Circulators with an expanded working temperature range up to +200 °C

In addition to the advantages of the CORIO C Circulator, the CORIO CD and CP Immersion Circulator can be equipped with an optional pump set for temperature control of external applications.

Your advantages

  • Precise temperature control
  • For internal and external applications (accessories required)
  • For bath tanks with a max. filling volume of 50 liters
  • Immersion depth: 7.5 ... 16.5 cm
  • Bright, white, easy-to-read display
  • Very quiet
  • Easy handling
  • Easy change-over from internal to external circulation and vice versa
  • pump capacity, infinitely adjustable
  • USB interface
  • R232 interface
  • Early warning system for low liquid level
  • Class III (FL) according to DIN 12876-1
Order No. 9013000

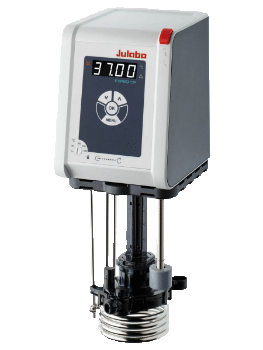

Model CORIO CP
Category Heating Immersion Circulators
Working temperature range (°C) +20 ... +200
Temperature stability (°C) ±0.02
Setting / display resolution 0.01 – 0.1 °C
Temperature Display LED
Heating capacity (kW) 2
Pump capacity flow rate (l/min) 8 ... 27
Pump capacity flow pressure (bar) 0.1 ... 0.7
Viscosity max. (cSt) 50
Ambient temperature 5...40 °C
Dimensions W x L x H (cm) 13.2 x 16 x 36.2
Weight (kg) 2.5
Cooling coil optional
Usable immersion depth (cm) 16

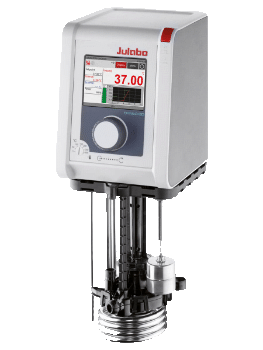

New temperature control technology for demanding applications

DYNEO DD heating circulators for internal and external applications are equipped with closed bath tanks. The tanks are well insulated and include a coil for counter-cooling. An integrated drain tap makes emptying the tank safe and clean. The multilingual 3.5-inch color display and unique rotary knob provide for straightforward and intuitive operation.

Your advantages

  • Flexible installation options
  • For internal and external applications
  • Powerful and infinitely adjustable pressure pump
  • Flow rate 23 l/min, pressure 0.6 bar
  • Easy switching between internal and external circulation
  • Large color TFT display, multilingual interface
  • Central rotary knob (controller) simplifies operation
  • Integrated programmer for 8 x 60 program steps
  • Integrated external Pt100 connection
  • USB port
  • RS232 interface or analog interfaces (optional)
Order No. 9021000
Order No. with RS232 Option 9021000.D
Order No. with analog Option 9021000.A
Model DYNEO DD
Category Heating Immersion Circulators
Working temperature range (°C) +20 ... +200
Temperature stability (°C) ±0.01
Setting / display resolution 0.01 °C
Temperature Display 3.5" TFT Display
Heating capacity (kW) 2
Pump capacity flow rate (l/min) 8 ... 23
Pump capacity flow pressure (bar) 0.1 ... 0.6
Viscosity max. (cSt) 50
Ambient temperature 5...40 °C
Dimensions W x L x H (cm) 13.2 x 16 x 35.5
Weight (kg) 2.5
Cooling coil optional
Usable immersion depth (cm) 16

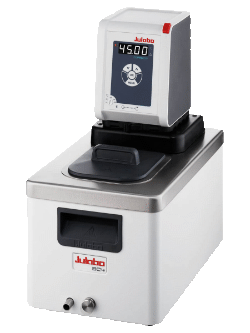

Open Heating Bath Circulators

for internal temperature applications

Open heating bath circulators are designed for internal applications in the circulator bath. The models on this page are equipped with bath tanks made of Polycarbonat or stainless steel. Available accessories include a variety of test tube racks, immersion-height adjustable platforms and cooling coils. The circulator can be removed for easy cleaning of the bath tanks.

The new generation of laboratory circulators for routine work and standard tasks

The Open Heating Bath Circulators of the new CORIO series feature high-quality bath tanks made of stainless steel.

Your advantages

  • Models for internal applications
  • Bright, white, easy to read display
  • Very quiet
  • Integrated drain screw (except B5)
Order No. Model Working temperature range Temperature stability Heating capacity (kW) Pump pressure (bar) Circulation capacity flow rate  (l/min)
 (°C) (°C)
9011405 CORIO C-B5 +20 ... +100 ±0.03 2 0.1 6
9011413 CORIO C-B13 +20 ... +100 ±0.03 2 0.1 6
9011417 CORIO C-B17 +20 ... +100 ±0.03 2 0.1 6
9011419 CORIO C-B19 +20 ... +100 ±0.03 2 0.1 6
9011427 CORIO C-B27 +20 ... +100 ±0.03 2 0.1 6
9011305 CORIO C-BT5 +20 ... +100 ±0.03 2 0.1 6
9011309 CORIO C-BT9 +20 ... +100 ±0.03 2 0.1 6
9011319 CORIO C-BT19 +20 ... +100 ±0.03 2 0.1 6
9011327 CORIO C-BT27 +20 ... +100 ±0.03 2 0.1 6

Heating Circulators

for external and internal temperature applications up to +300 °C with stainless steel bath tanks and pump connections

JULABO circulators with stainless steel bath tanks are suitable for both internal and external temperature control. They have greater power for larger and open systems, making them ideal for external temperature control. Smaller objects may be inserted directly into the circulator's bath at the same time. Models are available with a variety of bath sizes and other functional characteristics. Accessories like Pt100 sensors, heat transfer liquid, tubing, and adapters are available to facilitate connection to external systems. An integrated cooling coil enables temperature control below or near the ambient temperature.

Laboratory Circulators with an expanded working temperature range up to +200 °C

In addition to the advantages of the CORIO C Circulator, the CORIO CD and CP Immersion Circulator can be equipped with an optional pump set for temperature control of external applications.

Your advantages

  • Precise temperature control
  • For internal and external applications (accessories required)
  • For bath tanks with a max. filling volume of 50 liters
  • Immersion depth: 7.5 ... 16.5 cm
  • Bright, white, easy-to-read display
  • Very quiet
  • Easy handling
  • Easy change-over from internal to external circulation and vice versa
  • pump capacity, infinitely adjustable
  • USB interface
  • R232 interface
  • Early warning system for low liquid level
  • Class III (FL) according to DIN 12876-1

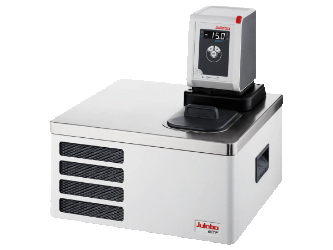

Order No. Model Working temperature range Temperature stability Heating capacity (kW) Pump capacity flow rate Pump pressure (bar)
(°C) (°C) (l/min)
9012504 CORIO CD-BC4 +20 ... +150 ±0.03 2 15 0.35
9012506 CORIO CD-BC6 +20 ... +150 ±0.03 2 15 0.35
9012512 CORIO CD-BC12 +20 ... +150 ±0.03 2 15 0.35
9012526 CORIO CD-BC26 +20 ... +150 ±0.03 2 15 0.35
9013504 CORIO CP-BC4 +20 ... +200 ±0.02 2 8 ... 27 0.1 ... 0.7
9013506 CORIO CP-BC6 +20 ... +200 ±0.02 2 8 ... 27 0.1 ... 0.7
9013512 CORIO CP-BC12 +20 ... +200 ±0.02 2 8 ... 27 0.1 ... 0.7
9013526 CORIO CP-BC26 +20 ... +200 ±0.02 2 8 ... 27 0.1 ... 0.7

New temperature control technology for demanding applications

DYNEO DD heating circulators for internal and external applications are equipped with closed bath tanks. The tanks are well insulated and include a coil for counter-cooling. An integrated drain tap makes emptying the tank safe and clean. The multilingual 3.5-inch color display and unique rotary knob provide for straightforward and intuitive operation.

Your advantages

  • Suitable for internal and external applications
  • Powerful and infinitely adjustable pressure pump
  • Flow rate 22 l/min, pressure 0.6 bar
  • Easy switching between internal and external circulation
  • Large color TFT display, multilingual interface
  • Central rotary knob (controller) simplifies operation
  • Integrated programmer for 8 x 60 program steps
  • Integrated external Pt100 connection
  • USB port
  • RS232 interface or analog interfaces
  • Bath cover included with delivery
  • Integrated drain makes emptying liquid easy and safe.
  • High-quality thermal insulation of the bath tank

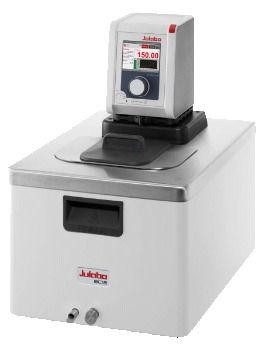

Order No. Model Working temperature range Temperature stability Heating capacity (kW) Pump capacity flow rate Pump pressure (bar)
 (°C) (°C) (l/min)
9021504 DYNEO DD-BC4 +20 ... +200 ±0.01 2 8 ... 23 0.1 ... 0.6
9021506 DYNEO DD-BC6 +20 ... +200 ±0.01 2 8 ... 23 0.1 ... 0.6
9021512 DYNEO DD-BC12 +20 ... +200 ±0.01 2 8 ... 23 0.1 ... 0.6
9021526 DYNEO DD-BC26 +20 ... +200 ±0.01 2 8 ... 23 0.1 ... 0.6

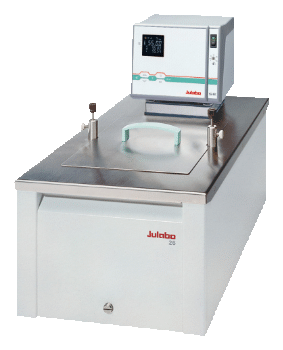

Heating Circulator with stainless-steel bath tank for internal and external temperature applications

JULABO Heating Circulators with stainless steel bath tanks are mainly used for internal and external temperature tasks. The new range of these models now have increased capacities, allowing for temperature application of larger external systems, as well as open systems. Simultaneous temperature applications of smaller objects can also be carried out directly in the internal bath of the circulator. Models from the TopTech and HighTech Series’ are available with different bath sizes and features. Accessories for these units include test tube racks, bath covers etc. An integrated cooling coil is provided for temperature applications at near ambient or just below.

Your advantages

  • VFD COMFORT DISPLAY
  • Keypad for setpoints, warning/safety values and menu functions
  • ICC (Intelligent Cascade Control), self-optimizing temperature control
  • ATC3 3-Point-Calibration
  • Pt100 External sensor connection for measurement and control
  • SMART PUMP, electronically adjustable pump stages
  • Early warning system for low liquid level (DBGM 203 06 059.8)
  • Adjustable high temperature cut-out, visible via display
  • RS232 interface for online communication
  • Integrated programmer for 10 program steps
Order No. Model Working temperature range Temperature stability Heating capacity (kW) Pump capacity flow rate Pump pressure (bar)
 (°C) (°C) (l/min)
9212504 HE-4 +20 ... +250 ±0.01 2 22-26 0.4-0.7
9312504 HL-4 +20 ... +250 ±0.01 2 22-26 0.4-0.7
9252506 SE-6 +20 ... +300 ±0.01 3 22-26 0.4-0.7
9252512 SE-12 +20 ... +300 ±0.01 3 22-26 0.4-0.7
9252526 SE-26 +20 ... +300 ±0.01 3 22-26 0.4-0.7
9352506 SL-6 +20 ... +300 ±0.01 3 22-26 0.4-0.7
9352512 SL-12 +20 ... +300 ±0.01 3 22-26 0.4-0.7
9352526 SL-26 +20 ... +300 ±0.01 3 22-26 0.4-0.7

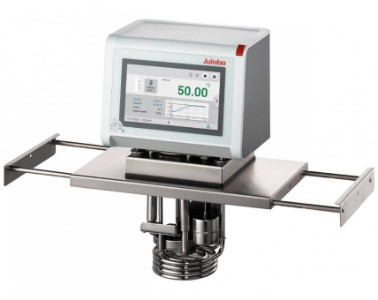

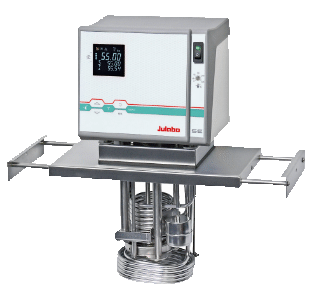

Bridge Mounted Circulators

with extendable bridge for bath tanks up to 100 liters filling volume

JULABO bridge mounted circulator with extendable stainless steel bridge. The adjustable bridge permits use of the circulator with a wide variety of bath tanks. This model is suitable for both internal and external temperature control tasks. It has the power to control the temperature of even large bath tanks up to 100 L. An integrated cooling coil enables temperature control below or near the ambient temperature.

Sophisticated models for demanding applications

Bridge mounted circulator with extendable bridge for any bath tank up to 100 liters

JULABO bridge mounted circulator with extendable bridge made of stainless steel for any bath tanks. For internal and external temperature applications. The model offers high pump and heating capacities for temperature control of large baths up to 100 liters. Including a built-in cooling coil for counter-cooling with tap water.

Your advantages

  • VFD COMFORT DISPLAY
  • Keypad for setpoints, warning/safety values and menu functions
  • ICC (Intelligent Cascade Control), self-optimizing temperature control
  • ATC3 3-Point-Calibration
  • Pt100 External sensor connection for measurement and control
  • SMART PUMP, electronically adjustable pump stages
  • Early warning system for low liquid level (DBGM 203 06 059.8)
  • Adjustable high temperature cut-out, visible via display
  • RS232 interface for online communication
  • Integrated programmer for 10 program steps
  • Expandable bridge from 31 to 66 cm
  • Built-in cooling coil
Order No. Model Working temperature range Temperature stability Heating capacity (kW) Pump capacity flow rate Pump pressure (bar)
 (°C) (°C) (l/min)
9252218 SE-Z +20 ... +300 ±0.01 3 22-26 0.4-0.7

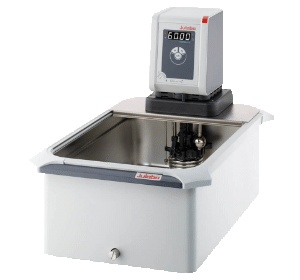

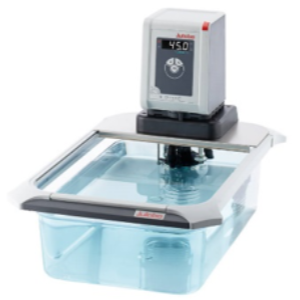

Heating Circulators with Open Bath

For internal and external temperature applications with transparent or stainless steel bath tanks and pump connections

JULABO open heating bath circulators with bath tanks made of stainless steel, Plexiglas, or Makrolon are designed for internal and external temperature applications. They are primarily used for internal temperature control directly within the bath tank. External closed systems may be connected via the integrated pump connections. Models are available with a variety of bath sizes and other functional characteristics. A variety of bath inserts for laboratory glassware, bath covers, and adjustable floors are available as accessories. Common applications include temperature control of measurement cells, photometers, and samples; heating of glass flasks; and temperature testing of food, luxury articles, and materials.

The new generation of laboratory circulators for routine work and standard tasks

The Open Heating Bath Circulators of the new CORIO series feature high-quality bath tanks made of stainless steel and pump connections.

Your advantages

  • Models for internal and external applications
  • Bright, white, easy to read display
  • Very quiet
  • Easy pump change-over between internal and external circulation
  • USB connection
  • High-quality bath tanks made of stainless steel
  • Integrated drain screw (except B5)
Order No. Model Working temperature range Temperature stability Heating capacity (kW) Pump capacity flow rate Pump pressure (bar)
 (°C) (°C) (l/min)
9012405 CORIO CD-B5 +20 ... +150 ±0.03 2 15 0.35
9012413 CORIO CD-B13 +20 ... +150 ±0.03 2 15 0.35
9012417 CORIO CD-B17 +20 ... +150 ±0.03 2 15 0.35
9012419 CORIO CD-B19 +20 ... +150 ±0.03 2 15 0.35
9012427 CORIO CD-B27 +20 ... +150 ±0.03 2 15 0.35
9012433 CORIO CD-B33 +20 ... +150 ±0.03 2 15 0.35
9012439 CORIO CD-B39 +20 ... +150 ±0.03 2 15 0.35
9012305 CORIO CD-BT5 +20 ... +100 ±0.03 2 15 0.35
9012319 CORIO CD-BT19 +20 ... +100 ±0.03 2 15 0.35
9012327 CORIO CD-BT27 +20 ... +100 ±0.03 2 15 0.35

Refrigerated – Heating Circulators

for working temperatures from -50 °C to +200 °C

JULABO Refrigerated and Heating Circulators are suitable for temperature application to external systems with simultaneous operation in the bath tank. Models in different performance classes are available. The units provide high heating/cooling capacities to ensure rapid heat-up and cool-down times. With ‚Active Cooling Control' to +200 °C. ‚FP‘ models offer proportional cooling control to ensure energy-saving performance and to reduce heat generation to the environment. Convenient cleaning of dust by removable venting grid. Some models have a handle or castors to allow easy transport. All models provide a drain port on the front for conveniently draining the bath fluid. Typical applications: Temperature applications to external, closed systems, such as for example photometers, refractometers, viscometers, etc. For simultaneous application to small objects in the circulator bath.

The new generation of laboratory circulators for routine work and standard tasks

Refrigerated / Heating Circulators of the new CORIO series distinguish themselves with a great price-to-performance ratio. They are ideal for all standard tasks and routine work in laboratories and industry.

Your advantages

  • Models for internal and external applications
  • Bright, white, easy to read display
  • Very quiet
  • Easy pump change-over (internal and external circulation)
  • External pump connections (M16x1)
  • USB connection
  • Space-saving cooling coil design yields more usable space in the bath tank
  • Bath lid and drain tap included
  • Removable ventilation grid
  • Refrigeration unit without side vents
  • Class III (FL) according to DIN 12876-1
Order No. Model Working temperature range Temperature stability Cooling capacity at 20°C (kW) Heating capacity (kW) Pump capacity flow rate Pump pressure
(°C) (°C) (l/min) (bar)
9012701 CORIO CD-200F -20 ... +150 ±0.03 0.22 2 15 0.35
9012702 CORIO CD-201F -20 ... +150 ±0.03 0.22 2 15 0.35
9012703 CORIO CD-300F -25 ... +150 ±0.03 0.31 2 15 0.35
9012704 CORIO CD-600F -35 ... +150 ±0.03 0.6 2 15 0.35
9012705 CORIO CD-601F -40 ... +150 ±0.03 0.6 2 15 0.35
9012706 CORIO CD-900F -40 ... +150 ±0.03 0.9 2 15 0.35
9012707 CORIO CD-1000F -40 ... +150 ±0.03 1 2 15 0.35
9012708 CORIO CD-1001F -38 ... +100 ±0.03 1 2 15 0.35
9013701 CORIO CP-200F -20 ... +200 ±0.03 0.2 2 8 ... 27 0.1 ... 0.7
9013702 CORIO CP-201F -20 ... +200 ±0.03 0.2 2 8 ... 27 0.1 ... 0.7
9013703 CORIO CP-300F -30 ... +200 ±0.03 0.3 2 8 ... 27 0.1 ... 0.7
9013704 CORIO CP-600F -35 ... +200 ±0.03 0.6 2 8 ... 27 0.1 ... 0.7
9013705 CORIO CP-601F -35 ... +200 ±0.03 0.6 2 8 ... 27 0.1 ... 0.7
9013706 CORIO CP-900F -38 ... +200 ±0.03 0.9 2 8 ... 27 0.1 ... 0.7
9013707 CORIO CP-1000F -50 ... +200 ±0.03 1 2 8 ... 27 0.1 ... 0.7
9012708 CORIO CP-1001F -38 ... +100 ±0.03 1 2 8 ... 27 0.1 ... 0.7

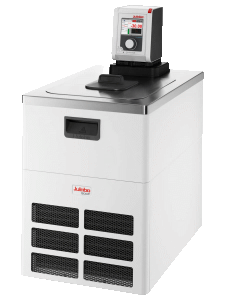

New temperature control technology for demanding applications

DYNEO DD refrigerated circulators have a wide working temperature range. Refrigerated circulators are suitable for both internal and external applications. The multilingual 3.5-inch color display and unique rotary knob provide for straightforward and intuitive operation. Pump capacity is 22 l/min with pressure of 0.6 bar. The cooling machines operate precisely and reliably even at elevated ambient temperatures up to +40 °C.

Your advantages

  • Powerful cooling machines
  • Suitable for internal and external applications
  • Optimized cooling coil design saves space in the bath tank
  • Powerful and infinitely adjustable pressure pump
  • Flow rate 22 l/min, pressure 0.6 bar
  • Easy switching between internal and external circulation
  • Large color TFT display, multilingual interface
  • Central rotary knob (controller) simplifies operation
  • Integrated programmer for 8 x 60 program steps
  • Integrated external Pt100 connection
  • USB port
  • RS232 interface or analog interfaces (optional)
  • Bath cover included with delivery
  • Integrated drain makes emptying liquid easy and safe.
Order No. Model Working temperature range Temperature stability Cooling capacity at 20°C (kW) Heating capacity (kW) Pump capacity flow rate Pump pressure
(°C) (°C) (l/min) (bar)
9021701 DYNEO DD-200F -20 ... +200 ±0.01 0.2 2 8 ... 23 0.1 ... 0.6
9021702 DYNEO DD-201F -20 ... +200 ±0.01 0.2 2 8 ... 23 0.1 ... 0.6
9021703 DYNEO DD-300F -25 ... +200 ±0.01 0.3 2 8 ... 23 0.1 ... 0.6
9021704 DYNEO DD-600F -35 ... +200 ±0.01 0.6 2 8 ... 23 0.1 ... 0.6
9021705 DYNEO DD-601F -35 ... +200 ±0.01 0.6 2 8 ... 23 0.1 ... 0.6
9021706 DYNEO DD-900F -38 ... +200 ±0.01 0.9 2 8 ... 23 0.1 ... 0.6
9021707 DYNEO DD-1000F -50 ... +200 ±0.01 1 2 8 ... 23 0.1 ... 0.6
9021708 DYNEO DD-1001F -38 ... +100 ±0.01 1 2 8 ... 23 0.1 ... 0.6

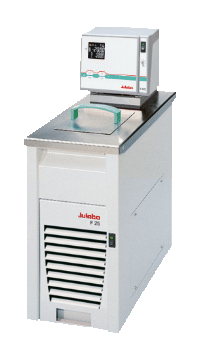

The powerful upper class unit for demanding applications.

JULABO Refrigerated & Heating Circulators for heating and cooling are suitable for external temperature tasks and for temperature applications directly in the bath. A model from three different series’ with different capacities can be selected. Powerful circulating pump systems and high heating and cooling capacities guarantee short heat-up and cool-down times. The inevitable dust accumulation that occurs in refrigeration systems is solved by means of an easily removed venting grid, which allows for easy cleaning. Depending on the model, the units are equipped with handles or castors for an easy transportation. All models have a drain tap on the front allowing the fluid to be drained easily. The compact assembly of each unit enables space to be saved in the laboratory.

Your advantages

  • VFD COMFORT DISPLAY
  • Keypad for setpoints, warning/safety values and menu functions
  • ICC (Intelligent Cascade Control), self-optimizing temperature control
  • ATC3 3-Point-Calibration
  • Pt100 External sensor connection for measurement and control
  • SMART PUMP, electronically adjustable pump stages
  • Adjustable pressure and suction pump
  • Early warning system for low liquid level (DBGM 203 06 059.8)
  • Adjustable high temperature cut-out, visible via display
  • RS232 interface for online communication
  • Optional: analogue interfaces
  • Integrated programmer for 10 program steps
  • Active Cooling Control
Order No. Model Working temperature range Temperature stability Cooling capacity at 20°C (kW) Heating capacity (kW) Pump capacity flow rate Pump pressure
 (°C) (°C) (l/min) (bar)
9212625 F25-HE -28 ... +200 ±0.01 0.26 2 22-26 0.4-0.7
9312625 F25-HL -28 ... +200 ±0.01 0.26 2 22-26 0.4-0.7
9212632 F32-HE -35 ... +200 ±0.01 0.45 2 22-26 0.4-0.7
9312632 F32-HL -35 ... +200 ±0.01 0.45 2 22-26 0.4-0.7
9312633 F33-HL -30 ... +200 ±0.01 0.5 2 22-26 0.4-0.7
9212634 F34-HE -30 ... +150 ±0.01 0.45 2 22-26 0.4-0.7
9312618 FP35-HL -35 ... +150 ±0.01 0.45 2 22-26 0.4-0.7
9212640 FP40-HE -40 ... +200 ±0.01 0.68 2 22-26 0.4-0.7
9312640 FP40-HL -40 ... +200 ±0.01 0.68 2 22-26 0.4-0.7
9212650 FP50-HE -50 ... +200 ±0.01 0.9 2 22-26 0.4-0.7
9312650 FP50-HL -50 ... +200 ±0.01 0.9 2 22-26 0.4-0.7
9212651 FPW50-HE -50 ... +200 ±0.01 0.9 2 22-26 0.4-0.7
9312651 FPW50-HL -50 ... +200 ±0.01 0.9 2 22-26 0.4-0.7

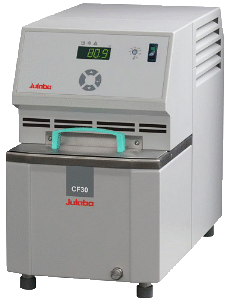

Cryo-Compact Circulators

for working temperatures from -40 °C to +200 °C

The new CF series offers compact refrigerated/heating circulators. With small overall dimensions the units can even be placed on a very small surface or within a complex installation. All models offer a heating capacity of 2 kW and safety class 3 according to DIN12876-1. The maximum ambient temperature of +40°C as well as a ventilation air cooling allow installing the units very closely side by side with other units or directly under a fume hood. Furthermore all the models feature pump connections for external temperature applications and a bath opening for temperature control of small objects directly in the circulator bath. Wetted parts are made of high quality stainless steel or plastic. The instruments provide a reliable Microprocessor electronics with high temperature stability as well as warning and safety functions.

The first choice for routine and straightforward laboratory applications from -40°C to 150°C

Cryo-Compact Circulator for internal and external temperature applications

The CF series offers compact refrigerated/heating circulators. With small overall dimensions the units can even be placed on a very small surface or within a complex installation. All models offer a heating capacity of 2 kW and classification 3 according to DIN12876-1. The maximum ambient temperature of +40°C as well as a ventilation air cooling allow installing the units very closely side by side with other units or directly under a fume hood. Furthermore all the models feature pump connections for external temperature applications and a bath opening for temperature control of small objects directly in the circulator bath. Wetted parts are made of high quality stainless steel or plastic. The instruments provide a reliable Microprocessor electronics with high temperature stability as well as warning and safety functions.

Your advantages

  • Ergonomic design and easy operation
  • Small overall dimensions for lowest space requirement
  • Splash-proof keypad
  • Large, bright LED temperature display
  • Precise PID temperature control
  • RS232 interface for PC connection
  • Adjustable high temperature cut-off
  • Classification 3 according to DIN12876-1
  • Pump connections for external temperature applications
  • Bath opening for temperature control of small objects in the bath
  • Front drain
Order No. Model Working temperature range Temperature stability Cooling capacity at 20°C (kW) Heating capacity (kW) Pump capacity flow rate Pump pressure
 (°C) (°C) (l/min) (bar)
9400330 CF30 -30 ... +150 ±0.03 0.32 2 15 0.35
9400340 CF40 -40 ... +150 ±0.03 0.47 2 15 0.35

The top class for demanding applications of all types.

Cryo-Compact Circulator for internal and external temperature applications

The new CF series offers compact refrigerated/heating circulators. With small overall dimensions the units can even be placed on a very small surface or within a complex installation. All models offer a heating capacity of 2 kW and classification 3 according to DIN12876-1. The maximum ambient temperature of +40°C as well as a ventilation air cooling allow installing the units very closely side by side with other units or directly under a fume hood. Furthermore all the models feature pump connections for external temperature applications and a bath opening for temperature control of small objects directly in the circulator bath. Wetted parts are made of high quality stainless steel or plastic. The instruments provide a reliable Microprocessor electronics with high temperature stability as well as warning and safety functions.

Your advantages

  • Ergonomic design and easy operation
  • Small overall dimensions for lowest space requirement
  • Splash-proof keypad
  • Bright VFD display and interactive LCD dialog display
  • Highly precise ICC cascade temperature control
  • RS232/RS485 interface for PC connection
  • Electronically adjustable pump stages
  • External Pt100 sensor connection
  • Integrated programmer with 6x60 program steps
  • Early warning system for low liquid level
  • 3-point calibration
  • TCF Temperature Control Features
  • Adjustable high temperature cut-off
  • Classification 3 according to DIN12876-1
  • Pump connections for external temperature applications
  • Bath opening for temperature control of small objects in the bath
  • Front drain
Order No. Model Working temperature range Temperature stability Cooling capacity at 20°C (kW) Heating capacity (kW) Pump capacity flow rate Pump pressure
 (°C) (°C) (l/min) (bar)
9400331 CF31 -30 ... +200 ±0.02 0.32 2 22-26 0.4-0.7
9400341 CF41 -40 ... +200 ±0.02 0.47 2 22-26 0.4-0.7

Ultra-Low Refrigerated-Heating Circulators



For working temperatures from -91 °C to +200 °C

JULABO Ultra-Low Refrigerated Circulators for heating and cooling. The units are suitable for external temperature applications with simultaneous operation in the bath tank. The units provide particularly high heating and cooling capacities for rapid heat-up and cool-down times even for large volume, external systems. ‚FP‘ models offer proportional cooling control to ensure energy-saving performance and to reduce heat generation to the environment. Models with the designation ‚W‘ are water-cooled. With handle or castors to allow easy transport. With drain port for conveniently draining the bath fluid. The units offer an improved insulation to prevent ice-formation and have a filling level display. Typical applications: Temperature applications to jacketed reaction vessels, autoclaves, miniplant installations, kilo labs, freezing point determination, calibration at low temperatures, petroleum testing, etc.

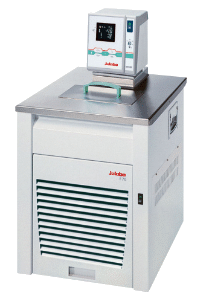

Upper middle class with ext. Pt100 sensor connection

Ultra-low Refrigerated Circulator with 2-stage cascade-cooling

JULABO Ultra-Low Refrigerated Circulators for heating and cooling are suitable for external temperature tasks. Powerful circulating pump systems and high heating and cooling capacities guarantee short heat-up and cool-down times. ACC ‘Active Cooling Control‘ provides active cooling control across the whole temperature range. An energy saving feature with only minor loss of heat is provided by the proportional cooling capacity control in the ‘FP’ refrigeration units. The inevitable dust accumulation that occurs in refrigeration systems is solved by means of an easily removed venting grill, which allows for easy cleaning. The units are equipped with handles or castors for an easy transportation. All models have a drain tap on the front allowing the fluid to be drained easily. Additionally the instruments are equipped with an improved insulation to help avoid ice-formation, and have a visual liquid level display.

Your advantages

  • VFD COMFORT DISPLAY
  • Keypad for setpoints, warning/safety values and menu functions
  • PID3 cascade temperature control
  • ATC3 3-Point-Calibration
  • Pt100 External sensor connection for measurement and control
  • SMART PUMP, electronically adjustable pump stages
  • Early warning system for low liquid level (DBGM 203 06 059.8)
  • Adjustable high temperature cut-out, visible via display
  • RS232 interface for online communication
  • Integrated programmer for 10 program steps
  • Active Cooling Control
Order No. Model Working temperature range Temperature stability Cooling capacity at 20°C (kW) Heating capacity (kW) Pump capacity flow rate Pump pressure
 (°C) (°C) (l/min) (bar)
9162670 F70-ME -70 ... +100 ±0.02 0.34 1.3 11-16 0.23-0.45
9162681 F81-ME -81 ... +100 ±0.02 0.45 1.3 11-16 0.23-0.45
9162689 FP89-ME -90 ... +100 ±0.02 1 1.3 11-16 0.23-0.45

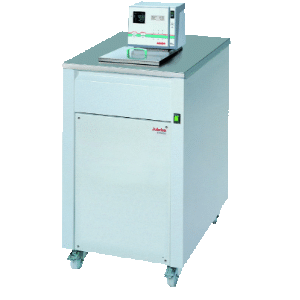

Superior models for most demanding applications

JULABO Ultra-Low Refrigerated Circulators for heating and cooling are suitable for external temperature tasks. Powerful circulating pump systems and high heating and cooling capacities guarantee short heat-up and cool-down times. ACC ‘Active Cooling Control‘ provides active cooling control across the whole temperature range. An energy saving feature with only minor loss of heat is provided by the proportional cooling capacity control in the ‘FP’ refrigeration units. The inevitable dust accumulation that occurs in refrigeration systems is solved by means of an easily removed venting grill, which allows for easy cleaning. The units are equipped with handles or castors for an easy transportation. All models have a drain tap on the front allowing the fluid to be drained easily. Additionally the instruments are equipped with an improved insulation to help avoid ice-formation, and have a visual liquid level display.

Your advantages

  • VFD COMFORT DISPLAY
  • LCD DIALOG DISPLAY backlit for convenient interactive operation
  • Keypad for setpoints, warning/safety values and menu functions
  • ICC (Intelligent Cascade Control), self-optimizing temperature control
  • TCF Temperature Control Features to optimize the control behaviour
  • ATC3 3-Point-Calibration
  • Pt100 External sensor connection for measurement and control
  • SMART PUMP, electronically adjustable pump stages
  • Early warning system for low liquid level (DBGM 203 06 059.8)
  • Adjustable high temperature cut-out, visible via display
  • RS232/RS485 interface for online communication
  • Integrated programmer for 6 x 60 program steps
  • Connections for solenoid valve and HSP booster pump
  • Proportional cooling control
  • Active Cooling Control
  • Proportional cooling control
Order No. Model Working temperature range Temperature stability Cooling capacity at 20°C (kW) Heating capacity (kW) Pump capacity flow rate Pump pressure
 (°C) (°C) (l/min) (bar)
9312681 F81-HL -81 ... +100 ±0.02 0.45 1.3 22-26 0.4-0.7
9352795N F95-SL -95 ... +0 ±0.05 3 22-26 0.4-0.7
9352751 FP51-SL -51 ... +200 ±0.05 2 3 22-26 0.4-0.7
9352752 FP52-SL -60 ... +100 ±0.05 3 3 22-26 0.4-0.7
9352752N FP52-SL -60 ... +100 ±0.05 3 3 22-26 0.4-0.7
9352752N150 FP52-SL-150C -60 ... +150 ±0.05 3 3 22-26 0.4-0.7
9352755 FP55-SL -60 ... +100 ±0.05 5.2 3 22-26 0.4-0.7
9352755N FP55-SL -60 ... +100 ±0.05 5.2 3 22-26 0.4-0.7
9352755N150 FP55-SL-150C -60 ... +150 ±0.05 5.2 3 22-26 0.4-0.7
9312689 FP89-HL -90 ... +100 ±0.02 1 1.3 22-26 0.4-0.7
9352790 FP90-SL -90 ... +100 ±0.05 1.8 3 22-26 0.4-0.7
9352790N FP90-SL -90 ... +100 ±0.05 1.8 3 22-26 0.4-0.7
9352790N150 FP90-SL-150C -90 ... +150 ±0.05 1.8 3 22-26 0.4-0.7
9352753 FPW52-SL -60 ... +100 ±0.05 3 3 22-26 0.4-0.7
9352753N FPW52-SL -60 ... +100 ±0.05 3 3 22-26 0.4-0.7
9352753N150 FPW52-SL-150C -60 ... +150 ±0.05 3 3 22-26 0.4-0.7
9352756 FPW55-SL -60 ... +100 ±0.05 5.5 3 22-26 0.4-0.7
9352756N FPW55-SL -60 ... +100 ±0.05 5.5 3 22-26 0.4-0.7
9352756N150 FPW55-SL-150C -60 ... +150 ±0.05 5.5 3 22-26 0.4-0.7
9352791 FPW90-SL -90 ... +100 ±0.05 1.8 3 22-26 0.4-0.7
9352791N FPW90-SL -90 ... +100 ±0.05 1.8 3 22-26 0.4-0.7
9352791N150 FPW90-SL-150C -90 ... +150 ±0.05 1.8 3 22-26 0.4-0.7
9352793 FPW91-SL -91 ... +100 ±0.2 4.5 3 22-26 0.4-0.7
9352793N FPW91-SL -91 ... +100 ±0.2 4.5 3 22-26 0.4-0.7
9352796N FW95-SL -95 ... +0 ±0.05 3 22-26 0.4-0.7

Shaking Water Bath

Your Location: Main page > Equipment > Water Bath

A shaking water bath from JULABO offers optimal convenience for the user with a spray water-protected membrane keypad and a bright MULTI-DISPLAY (LED) for indication of up to four different values. Cutting-edge microprocessor technology with PID temperature control ensures optimal temperature stability in the water bath. Adjustable upper and lower temperature warning functions protect the samples. Low liquid level triggers a full shutdown. JULABO shaking water baths are suitable for continuous unsupervised operation. The bath tank and all parts that contact the bath liquid are made of high-quality stainless steel.

Strong Benefits

  • Working temperature range from +20 to+99.9 °C
  • User-friendly operation via keypad
  • Bright LED-Display
  • Bath volumes from 2 to 26 liters
  • Splash-proof design
  • Power switch integrated in keypad (patented)
  • High temperature stability of ±0.2 °C or ±0.02 °C
  • Dry-running protection with audible and optical alarm
  • Warning and cut-off protection for high/low temperature
  • Adjustable shaking frequencies from 20 to 200 RPM‘s in SW models
  • Convenient bath drains
  • Removable bottom plate and shaking insert
  • Lift-up bath cover (optional)
  • Wide selection of accessories for temperature control of samples
  • All wetted parts are made of stainless steel or high grade plastics

Characteristics

Display:

Easy to read Easy to read
Large LED temperature display for actual value and setpoint (resolution 0.1 °C)

Several values at a glance Several values at a glance
Large Multi-Display (LED), easy to read across the room, for actual value and up to 3 setpoints, warning functions, high temperature cut-off, selected pump stages (resolution 0.01/0.1 °C)

Operation:

Clearly structured Clearly structured
Comfortable, splash-proof keypad for setpoint adjustment, high/low temperatures, timer and shaking frequeny (SW models)

Temperature Control:

Precise Precise
PID Temperature control with set control parameters, temperature stability ±0.02...±0.2 °C

High measuring accuracy High measuring accuracy
Absolute Temperature Calibration’ for manual compensation of a temperature difference, 1-point calibration

Technical Features:

Serial connection Serial connection
RS232 interface for PC connection, e.g. for data communication and recording of measured values

Warning & Safety Functions:

Early warning system for high/low temperature limits Early warning system for high/low temperature limits
Maximum safety for applications, optical and audible alarm, convertible to automated cut-off function

Only for non-flammable bath fluids Only for non-flammable bath fluids

Classification I (NFL) according to DIN 12876-1

Other characteristics:
Lift-up Makrolon cover available as accessory (order no. 8970288) RS232 interface cable available as accessory (order no. 8980075)
Order No. Model Working temperature range (°C) Temperature stability (°C) Heating capacity (kW) Volume (L) Bath opening
9550322 SW22 +20 ... +99.9 ±0.2 2 8 ... 20 50 x 30 / 18cm
9550323 SW23 +20 ... +99.9 ±0.02 2 8 ... 20 50 x 30 / 18cm

Thermal Bath Fluids

  • Wide temperature range
  • Low viscosity
  • High stability
  • Good heat conductivity
  • Minimum odor
  • Low corrosion tendency
  • Low toxicity
  • Long shelf life
Website: https://www.julabo.com/en/products/accessories/bath-fluids

PRESTO™ – Best Performance in Highly Dynamic Temperature Control Systems

{:en}

  • Highly precise external temperature
  • Wide working temperature ranges using one bath fluid
  • Extremely fast heating and cooling
  • Highest performance with small footprint
  • Powerful circulation pumps, select a stage or a specific pressure
  • No condensation or ice build-up
Website: https://www.julabo.com/en/products/highly-dynamic-temperature-control-systems{:}{:zh} PRESTO代表了全球最顶级的液体温度控制技术,主要应用于反应釜高精度温度控制,以及材料测试中的温度条件模拟,拥有宽广的温度范围和强劲的升降温速率。该系列可提供 -92⋯+250℃的温度控制范围,配套反应釜,特别适用于快速放热和吸热的化学反应试验。特别适用于新能源汽车电池包的性能测试,流速大,保证 PRESTO 和外部系统快速换热;自润滑磁耦合循环泵,适用于各类试验要求,并可延长使用寿命。配套 5.7 英寸彩色触摸屏,指尖轻松完成操作,可直接显示各种参数,包括设备自身性能参数和外部控制参数。PRESTO 超静音设计,适用于更加苛刻的外部环境。设计多重通讯数据接口,使 PRESTO 轻松接入各类通讯网络。PRESTO 所有日常操作均在正前方,管路连接均在仪器后方,科学的通风设计允许将 PRESTO 放置在试验台下,并且可以多台并行摆放,大大节省试验空间。A 型为风冷型,安装操作简单;W 为水冷型,散热不受环境温度影响。   产品特点 * 5.7英寸工业彩色触摸屏; * 外部温度的精确控制应用程序的理想选择; * 更宽的工作温度范围使用一种浴液;针对夹套反应容器或其他温度控制苛刻的应用要求设计; * 快速地加热或冷却;用来快速补偿放热和吸热反应; * EHC高效分段冲击换热技术,大幅度提高了设备的加热制冷速率以及设备的长期耐用性; * ACC动态制冷控制技术,高温下同样拥有很低的功率积极制冷,保障温度稳定性,同时可以保证系统在高温下的快速制冷降温; * WLT无线温度控制技术,利用无线的超远程通讯解决复杂或高危的温度控制应用; * 升级FOM模块后,流量,泵压,温度等参数可以同时监控设定和控制,适用于汽车,新能源电池等行业应用; * ICC智能动态温度控制 ,稳定性为 ±0.01℃; * 强大的智能循环泵 ,可以选择一个阶段或一个特定的泵压; * 可以延长浴液的保质期; * 液压密封 ,以防止刺鼻的浴油蒸汽和气味; * 永不结霜或结冰{:}

PURA Water Baths

{:en}

Your Location: Main page > Equipment > Water Bath

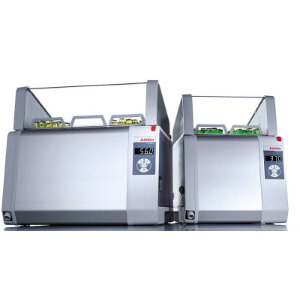

The all-new PURA water baths
High quality. Practical. Durable.

Users place high demands on modern water baths in terms of functionality and reliability. Above all, a water bath must be trouble-free and low-maintenance in everyday operations. For this reason, JULABO does not only count on proven functions in the new PURA series of water baths, but particularly also on simple, intuitive operation and high material and component quality. The result is functional and high-quality water baths that facilitate regular temperature applications in the laboratory and, thanks to their durable design, can with stand permanent loads without any problems.

In addition to their high quality, ease of use and easy-to-read display, PURA water baths offer a number of functions and features that enable efficient use in the laboratory. These include, among other things, an integrated timer and specially designed edge surfaces, which automatically drain condensed fluid back into the bath. Another unique feature is the included, removable platform. Sample containers, which are placed on the platform, are fully immersed and thus optimally tempered.

Operating the water bath is straightforward, and the bright, easy to read white LED display can easily be read – also from a distance.

Important Advantages

  • Working temperature range from 1) +18 °C to +99.9 °C
  • Models with bath volumes from 0.8 to 36 liters
  • Temperature stability 2) of ± 0.15 °C
  • Heating capacity up to 2 kW
  • Bright display
  • Splash-proof protected mains switch
  • Built-in dry running protection
  • Specially designed edge surfaces, which drain condensed fluid back into the bath
  • Removable platform for full immersion of the sample containers (included in the delivery)

1) with counter-cooling/bath cover (accessories)
2) with bath cover (accessories)

Order No. Model Working temperature range (℃) Temperature stability (℃) Heating capacity (kW) Volume (Lit) Bath opening (in.)
9550504 PURA 4 +18 … +99.9 +/- 0.15 0.8 0.8 … 4.5 12 x 27 /14
9550510 PURA 10 1.2 1.4 … 9.5 22 x 27 / 14
9550514 PURA 14 1.8 2 … 14 33 x 27 / 14
9550522 PURA 22 2 3.4 … 25.5 55 x 27 / 18
9550530 PURA 30 2 4.8 … 36 77 x 27 / 18

Less is more.

Less is more.
Thanks to their design, PURA water baths require a minimum amount of water so that even small sample containers stand safely.
Lightweight.
Lightweight.
PURA water baths impress with their low weight and can be flexibly used.



Start. Stop. Timer.
Start. Stop. Timer.
PURA water baths offer an internal timer function. After expiration of the set time, a signal sounds and the device either continues operation or switches off.
Tilting – no, thank you.
Tilting – no, thank you.
The PURA water bath design is tiltproof. Non-slip rubber feet prevent slipping and carrying handles simplify the transport.
Ease of use.
Ease of use.
The controls on the front side are easy to reach and use.
Easy handling.
Easy handling.
A frontally integrated drain screw allows clean, safe, and effortless emptying of the baths.
Brilliant.
Brilliant.
Very bright display makes it easy to read even from a distance.
Easy cleaning.
Easy cleaning.
PURA does not incorporate any interfering functional elements. The smooth surfaces can be cleaned quickly and without residue.
{:}{:zh} JULABO PURA 系列新款通用水浴槽,杰出,创新,惊艳的功能设计,给客户提供最完美的使用体验,终身免维护,100% 安全性,是全球通用水浴槽的标杆产品. 广泛应用于政府检验机构,企业品控及科研部门,高校院所实验室,医疗机构实验室等,进行生物培养,食药检测,材料测试血液化验,样品前处理等各种常规.

使用最新的全平面加热系统及内槽超硬珐琅镀层技术

  • 温度范围:室温 +5 ~ +99.9℃
  • 温度稳定性:±0.2℃
  • 防水防尘操作面板,高亮白光LED显示,可以显示实际温度值和设定值

内槽超硬珐琅瓷镀层

  • 玻璃般坚硬,防刮伤,只有暴力破坏才能损伤镀层
  • 卫生级洁净,细菌无法在镀层表面附着生长,不产生菌膜
  • 超级耐腐蚀,所有与液体接触部分均耐腐蚀(去离子水,3%盐水适用)
  • 清洁超简单,浴槽无死角,无须清洁剂,直接擦拭即可清洁

全平面加热系统

  • 加热速度快,最高的加热速率/体积比
  • 温场极均匀,专门设计的自然循环模式,不使用循环泵即可保证极高均匀性
  • 极限省空间,浴槽容积与外部尺寸比最大
  • 水深跨度宽,最低1-2cm水深即可开始实验,适合一些低矮器皿的恒温

全面的安全保障

  • 设备具备防干烧功能
  • 低液位声光报警功能和自动断电功能

使用及操作简便

  • 标配集成式的放水阀,接口及软管,放水操作简单省力
  • 试管架自沥水功能,一提,一插,即可轻松实现试管沥水,保证实验台及操作者的洁净
  • 透明浴槽盖采用无工具安装设计,并可耐受100℃高温
  • 可使用沙浴,金属粒浴(加热功率需要提前调整)
  • 标配计时功能,倒计时结束后报警通知,可选继续运行或自动关机
  • USB通讯,和电脑连接,实现远程开关机,设定温度,读取温度,加热功率等
{:}{:tw} JULABO PURA 系列新款通用水浴槽,傑出,創新,驚豔的功能設計,給客戶提供最完美的使用體驗,終身免維護,100% 安全性,是全球通用水浴槽的標杆產品. 廣泛應用於政府檢驗機構,企業品控及科研部門,高校院所實驗室,醫療機構實驗室等,進行生物培養,食藥檢測,材

使用最新的全平面加熱系統及內槽超硬琺瑯鍍層技術

  • 溫度範圍:室溫 +5 ~ +99.9℃
  • 溫度穩定性:±0.2℃
  • 防水防塵操作面板,高亮白光LED顯示,可以顯示實際溫度值和設定值

內槽超硬琺瑯瓷鍍層

  • 玻璃般堅硬,防刮傷,只有暴力破壞才能損傷鍍層
  • 衛生級潔淨,細菌無法在鍍層表面附著生長,不產生菌膜
  • 超級耐腐蝕,所有與液體接觸部分均耐腐蝕(去離子水,3%鹽水適用)
  • 清潔超簡單,浴槽無死角,無須清潔劑,直接擦拭即可清潔

全平面加熱系統

  • 加熱速度快,最高的加熱速率/體積比
  • 溫場極均勻,專門設計的自然迴圈模式,不使用迴圈泵即可保證極高均勻性
  • 極限省空間,浴槽容積與外部尺寸比最大
  • 水深跨度寬,最低1-2cm水深即可開始實驗,適合一些低矮器皿的恒溫

全面的安全保障

  • 設備具備防幹燒功能
  • 低液位聲光報警功能和自動斷電功能

使用及操作簡便

  • 標配集成式的放水閥,介面及軟管,放水操作簡單省力
  • 試管架自瀝水功能,一提,一插,即可輕鬆實現試管瀝水,保證實驗台及操作者的潔淨
  • 透明浴槽蓋採用無工具安裝設計,並可耐受100℃高溫
  • 可使用沙浴,金屬粒浴(加熱功率需要提前調整)
  • 標配計時功能,倒計時結束後報警通知,可選繼續運行或自動關機
  • USB通訊,和電腦連接,實現遠端開關機,設定溫度,讀取溫度,加熱功率等
{:}
