Major products: Electronic Balance

Product categories:

  • Analytical Balance
  • Electronic Balance
  • Top-loading Balance
  • Animal Balance
  • Moisture Analyzer

Special features:

Durable, high performance aluminium alloy mass sensor UniBloc

Shimadzu balance incorporate the one-piece aluminium alloy weighing senor in the balance to assembly stable temperature characteristics and ensure an excellent response time and stable corner -load performance. UniBloc design also assures a reliability and a longer operational life of the balance.

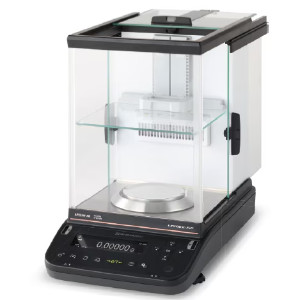

AP Series – Advanced Performance UniBloc Balance / Semi – Micro Analytical Balance

{:en}

Your Location: Main > Equipment > Balance


Highly-sophisticated simulation technology produced advanced UniBloc AP ™
Increased weighing capacity from 135mg to 220g (0.01mg model)

Micro amount weighing over 135mg (read 0.01mg step) is possible.

Faster Response and Higher Stability

High Speed - Fast weighing response
The response time for trace measurements (from 1 mg) is reduced to about 2 seconds. This significantly improves weighing efficiency.

Stress Free - A variety of accessories and options suitable for semi-micro measurements
The STABLO-AP ionizer can be mounted.
This eliminates the influence of static electricity, achieving reliable measurements in a simpler procedure.

For Regulation-for the Pharmaceutical Industry
Interlocking with LabSolutions Balance enables compliance with a variety of regulations for measurement data integrity, including ISO 17025 for testing laboratories, ISO 9001 and ISO 14001 for the manufacturing industry, and GLP/GMP and the United States Pharmacopeia (USP) for the pharmaceutical industry.

For HPLC
Functions are included for the preparation of buffer solutions used in HPLC.
As a result, the operation can be performed accurately and easily, even by non-specialists.

Save Your Operation
Equipped with USB as standard. Includes many diverse functions to support users.

Features:

  • Minimum display: 0.01mg / 0.1mg
  • Maximum capacity: 52g to 320g (Depends on model)
  • Included built in calibration
  • Response time for trace mesaurement reduced to about 2s
  • Optional ionizer eliminates static electricity in 1s
  • Engineered to resist temperature changes and disturbance.
  • High visability EL display
  • Waring signal of minimum sample quantity
  • Registered sample name or ID can be associated with measurement values
  • Specific gravity can be measured with specific gravity measurement kit

Easy-to-Read Organic EL Display (All models)

Because the pixel elements in the organic electroluminescence display emit light, the screen can be seen clearly even in dark locations. Multi-language display capability*2 provides a more intuitive operating interface. A wider viewing angle has also improved the visibility of measurement values, which helps increase the efciency of measuring operations.

Clear visible from the side

English example

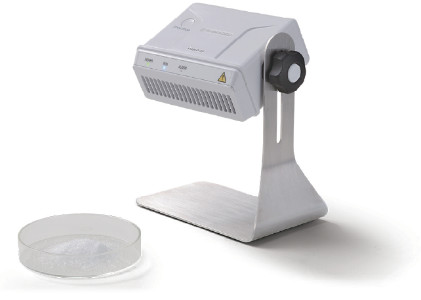

Built-in High-Performance Ionizer (Optional)

The ionizer eliminates influence of static electricity in 1/10 the time of previous models.

Note: Example of typical static electricity removal time (±1000 V --> ±100 V)

1 sec. for STABLO-AP and 10 sec. for STABLO-EX

AP series

Ordering Information:

Model Capacity Minimum Display Repeatability
(standard deviation)
Linearity Response Time Pan size
AP225W
NEW!
220g 0.01mg 0.015mg (to 20g)
0.03mg (to 100g)
0.05mg (to weighing capacity)
0.1mg 8s 91mm
AP135W 135g 0.01mg 0.05mg 0.1mg 8s 91mm
AP125WD 120g/52g 0.1mg/0.01mg 0.1mg/0.02mg 0.2mg/0.05mg 2s/8s 91mm
AP225WD 220g/102g 0.1mg/0.01mg 0.1mg/0.05mg 0.2mg/0.1mg 2s/8s 91mm
AP124W 120g 0.1mg 0.1mg 0.2mg 2s 91mm
AP224W 220g 0.1mg 0.1mg 0.2mg 2s 91mm
AP324W 320g 0.1mg 0.15mg 0.3mg 2s 91mm
AP124X 120g 0.1mg 0.1mg 0.2mg 2s 91mm
AP224X 220g 0.1mg 0.1mg 0.2mg 2s 91mm
AP324X 320g 0.1mg 0.15mg 0.3mg 2s 91mm
AP124Y 120g 0.1mg 0.1mg 0.2mg 2s 91mm
AP224Y 220g 0.1mg 0.1mg 0.2mg 2s 91mm
AP324Y 320g 0.1mg 0.15mg 0.3mg 2s 91mm
{:}{:zh}

您的位置: 主页 > 仪器 > 天平

快速

  • 采用新型质量传感器 UniBloc AP,反应速度和稳定性均得以大幅提升。可实现快速稳定的测量。
  • 采用新处理方法软件(AP-I系统),提升测量操作感,让您更舒适和自由地使用天平。

可靠

  • 消除静电对测量的影响,确保可靠的测量结果。(需要选配件STABLO-AP)

操作简便

  • 标准配备USB和RS232C连接器。可同时向打印机和PC输出数据。通过USB主设备(W系列配备),可连接USB存储器、键盘、条形码识别器。
  • 采用在黑暗处也可清晰看清屏幕的“有机EL显示器”。
  • 支持用户检查天平的功能。选择检查功能,操作界面即显示检查操作步骤。
  •  标准配备缓冲溶液的制备模式,样品制备模式,调配配方模式等。
  •  安全可靠的用户管理功能
  •  符合ISO/GMP/GLP的打印功能
  •  Labsolutions balance可实现天平称量数据在数据库中的一元化管理
  • Labsolutions balance可实现天平称量数据在数据库中的一元化管理
型号 量程 精度 重复性 线性 平均响应时间 称盘尺寸
AP135W 135g 0.01mg 0.05mg 0.1mg 8s 91mm
AP125WD 120g/52g 0.1mg/0.01mg 0.1mg/0.02mg 0.2mg/0.05mg 2s/8s 91mm
AP225WD 220g/102g 0.1mg/0.01mg 0.1mg/0.05mg 0.2mg/0.1mg 2s/8s 91mm
AP124W 120g 0.1mg 0.1mg 0.2mg 2s 91mm
AP224W 220g 0.1mg 0.1mg 0.2mg 2s 91mm
AP324W 320g 0.1mg 0.15mg 0.3mg 2s 91mm
AP124X 120g 0.1mg 0.1mg 0.2mg 2s 91mm
AP224X 220g 0.1mg 0.1mg 0.2mg 2s 91mm
AP324X 320g 0.1mg 0.15mg 0.3mg 2s 91mm
AP124Y 120g 0.1mg 0.1mg 0.2mg 2s 91mm
AP224Y 220g 0.1mg 0.1mg 0.2mg 2s 91mm
AP324Y 320g 0.1mg 0.15mg 0.3mg 2s 91mm
{:}{:tw}

您的位置: 主頁 > 儀器 > 天平

快速

  • 采用新型质量传感器 UniBloc AP,反应速度和稳定性均得以大幅提升。可实现快速稳定的测量。
  • 采用新处理方法软件(AP-I系统),提升测量操作感,让您更舒适和自由地使用天平。

可靠

  • 消除静电对测量的影响,确保可靠的测量结果。(需要选配件STABLO-AP)

操作简便

  • 标准配备USB和RS232C连接器。可同时向打印机和PC输出数据。通过USB主设备(W系列配备),可连接USB存储器、键盘、条形码识别器。
  • 采用在黑暗处也可清晰看清屏幕的“有机EL显示器”。
  • 支持用户检查天平的功能。选择检查功能,操作界面即显示检查操作步骤。
  •  标准配备缓冲溶液的制备模式,样品制备模式,调配配方模式等。
  •  安全可靠的用户管理功能
  •  符合ISO/GMP/GLP的打印功能
  •  Labsolutions balance可实现天平称量数据在数据库中的一元化管理
  • Labsolutions balance可实现天平称量数据在数据库中的一元化管理
型号 量程 精度 重复性 线性 平均响应时间 称盘尺寸
AP135W 135g 0.01mg 0.05mg 0.1mg 8s 91mm
AP125WD 120g/52g 0.1mg/0.01mg 0.1mg/0.02mg 0.2mg/0.05mg 2s/8s 91mm
AP225WD 220g/102g 0.1mg/0.01mg 0.1mg/0.05mg 0.2mg/0.1mg 2s/8s 91mm
AP124W 120g 0.1mg 0.1mg 0.2mg 2s 91mm
AP224W 220g 0.1mg 0.1mg 0.2mg 2s 91mm
AP324W 320g 0.1mg 0.15mg 0.3mg 2s 91mm
AP124X 120g 0.1mg 0.1mg 0.2mg 2s 91mm
AP224X 220g 0.1mg 0.1mg 0.2mg 2s 91mm
AP324X 320g 0.1mg 0.15mg 0.3mg 2s 91mm
AP124Y 120g 0.1mg 0.1mg 0.2mg 2s 91mm
AP224Y 220g 0.1mg 0.1mg 0.2mg 2s 91mm
AP324Y 320g 0.1mg 0.15mg 0.3mg 2s 91mm
{:}

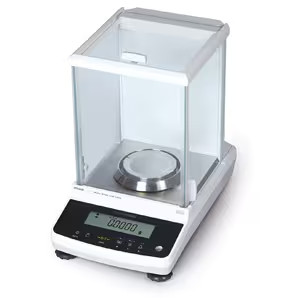

ATX/ATY Series – Analytical Balance

{:en}

Your Location: Main > Equipment > Balance

  • Minimum display: 0.1mg
  • Maximum sample capacity: 62g to 320g (Depends on model)
  • Superior performance and budgeted balance
  • Designed to set large container on the pan up to 91mm diameter.
  • Allow internal calibration by pressing keys (ATX Series only)
  • External calibration can perform by span calibration
  • Easy setting to adjust the desire ratio of stability and response
  • Convenient for making multiple measurement of sample and also the total mass
  • Compare sample to target values or pass/fail criteria
Model ATX84 ATX124 ATX224 ATX324 ATY64 ATY124 ATY224 ATY324
Capacity 82 g 120 g 220 g 320 g 62 g 120 g 220 g 320 g
Minimum Display 0.1 mg
Repeatability (Standard Deviation) ≤0.1 mg
Linearity  ±0.2 mg
Stabilisation Time*1  Approx. 3.0 seconds
Operating Temperature and Humidity Limits  5-40°C 20-85%*2
Temperature Coefficient for Sensitivity (10-30°C)  ±2ppm/°C
Pan Size (mm) approx.  Φ91
Main Body Dimensions (mm) approx.  213(W) x 356(D) x 338(H)
Main Body Weight (kg) approx.  6.2  6.0
Power requirement  12V, 1A
Internal Calibration

*1 The Stabilisation time is a representative value
*2 No condensation

{:}{:zh}

您的位置: 主页 > 仪器 > 天平

电动校准

马达驱动内砝码校准,只需一按键,可随时进行校准(ATX系列)
或者可以使用外部砝码校准(ATX/ATY系列)

简易设定

在测量过程中,只需一按键,可快速调节天平的响应性及稳定性。

个数测定功能

校准记录可以有时间、日期,符合GLP/GMP/ISO要求。

合格判别功能

预先设定上下限值,按试样重量显示合格、过量、不足。

公式化测定

Windows直通视窗

测定数据可直接输到Windows应用程序上,无需安装其它软件。(但需要选配件IFB-102A数据转换)

大称量盘
称量盘达到91mm

型号 量程(g) 精度(mg) 重复性(mg) 线性(mg) 平均响应时间(S) 称盘尺寸(mm)
ATX224 220 0.1 0.1 0.2 2.5 91
ATX124 120 0.1 0.1 0.2 2.5 91
ATX84 82 0.1 0.1 0.2 2.5 91
ATY224 220 0.1 0.1 0.2 2.5 91
ATY124 120 0.1 0.1 0.2 2.5 91
ATY64 62 0.1 0.1 0.2 2.5 91
{:}{:tw}

您的位置: 主頁 > 儀器 > 天平

电动校准

马达驱动内砝码校准,只需一按键,可随时进行校准(ATX系列)
或者可以使用外部砝码校准(ATX/ATY系列)

简易设定

在测量过程中,只需一按键,可快速调节天平的响应性及稳定性。

个数测定功能

校准记录可以有时间、日期,符合GLP/GMP/ISO要求。

合格判别功能

预先设定上下限值,按试样重量显示合格、过量、不足。

公式化测定

Windows直通视窗

测定数据可直接输到Windows应用程序上,无需安装其它软件。(但需要选配件IFB-102A数据转换)

大称量盘
称量盘达到91mm

型号 量程(g) 精度(mg) 重复性(mg) 线性(mg) 平均响应时间(S) 称盘尺寸(mm)
ATX224 220 0.1 0.1 0.2 2.5 91
ATX124 120 0.1 0.1 0.2 2.5 91
ATX84 82 0.1 0.1 0.2 2.5 91
ATY224 220 0.1 0.1 0.2 2.5 91
ATY124 120 0.1 0.1 0.2 2.5 91
ATY64 62 0.1 0.1 0.2 2.5 91
{:}

TX Series – Top-loading Balance

{:en}

Your Location: Main > Equipment > Balance

  • Mininum display: 0.1g / 0.01g / 0.001g (Depends on model)
  • Maximum sample capacity: 320g to 6200g (Depends on model)
  • Extremely capable balance with easy to operate key layout
  • Expanded Piece Counting function of enter, store and recall up to 5 different samples
  • Can be used anywhere with battery power (TXB series only)
  • Power will automatically turn off after a fixed or pre-set time
  • Sliding glass door windbreak system to assure fine measurement (TX series with 0.001g minimum display)
  • Display provides prompts for calibration procedure
  • Able to convert into various of units

TX series

Model TX223L TX323L TX423L TX2202L TX3202L TX4202L
Capacity 220g 320g 420g 2200g 3200g 4200g
Minimum Display 0.001g 0.001g 0.001g 0.01g 0.01g 0.01g
Repeatability 0.001g 0.01g
Linearity ±0.002g ±0.02g
Operating Ambient Temperature 5-40°C
Temperature Coefficient Sensitivity (ppm/C) ±3
Pan Size (mm) approx. ø110 167(W)×181(D)
Main Body Dimensions (mm) approx. 206(W)×291(D)×241(H) 200(W)×291(D)×80(H)
Weight (kg) approx. 3.8kg 2.8kg
Power requirement AC adaptor ( DC12V, 1A )

TXC series

Model TXC323L TXC623L
Capacity 320ct 620ct
Minimum Display 0.001ct
Repeatability 0.001ct
Linearity ±0.002ct
Operating Ambient Temperature 5-40°C
Temperature Coefficient Sensitivity (ppm/C) ±3
Pan Size (mm) approx. ø80
Main Body Dimensions (mm) approx. 206(W)×291(D)×241(H)
Weight (kg) approx. 3.8kg
Power requirement AC adaptor ( DC12V, 1A )

TXB series

Model TXB222L TXB422L TXB622L TXB2201L TXB4201L TXB6201L TXB621L TXB6200L
Capacity 220g 420g 620g 2200g 4200g 6200g 620g 6200g
Minimum Display 0.01g 0.1g 1g
Repeatability 0.01g 0.1g 1g
Linearity ±0.01g ±0.02g ±0.1g ±0.2g ±0.1g ±1g
Operating Ambient Temperature 10-30°C
Temperature Coefficient Sensitivity (ppm/C) ±15 ±10 ±5 ±15 ±10 ±5 ±20
Pan Size (mm) approx. ø110 ø160 ø110 ø160
Main Body Dimensions (mm) approx. 199(W)×260(D)×77(H)
Weight (kg) approx. 1.5kg
Power requirement AC adaptor ( DC12V, 1A ) or 6AA batteries
{:}{:zh}

您的位置: 主页 > 仪器 > 天平

电动校准

马达驱动内砝码校准,只需一按键,可随时进行校准(TW系列)

简易设定

在测量过程中,只需一按键,可快速调节天平的响应性及稳定性。

菜单操作键

菜单操作键容易操作的按键设计

Windows直通视窗

测定数据可直接输到Windows应用程序上,无需安装其它软件。

可使用干电池操作(TXB系列)

省电功能

如果你在一定时间内不使用天平,天平电源(TXB系列)或显示屏(TX系列)会自动关闭。

型号 量程(g) 精度(g) 重复性(g) 线性(g) 平均响应时间(S) 称盘尺寸(mm)
TW223L 220 0.001 0.001 0.002 1-2.5 110
TW323L 320 0.001 0.001 0.002 1-2.5 110
TW423L 420 0.001 0.001 0.002 1-2.5 110
TX223L 220 0.001 0.001 0.002 1-2.5 110
TX323L 320 0.001 0.001 0.002 1-2.5 110
TX423L 420 0.001 0.001 0.002 1-2.5 110
TX2202L 2200 0.01 0.01 0.02 1-2.5 167×181
TX3202L 3200 0.01 0.01 0.02 1-2.5 167×181
TX4202L 4200 0.01 0.01 0.02 1-2.5 167×181
TWC323L 320ct/64g 0.001ct/0.0002g 0.001ct/0.0002g 0.002ct/0.0004g 1-2.5 80
TWC623L 620ct/124g 0.001ct/0.0002g 0.001ct/0.0002g 0.002ct/0.0004g 1-2.5 80
TXC323L 320ct/64g 0.001ct/0.0002g 0.001ct/0.0002g 0.002ct/0.0004g 1-2.5 80
TXC623L 620ct/124g 0.001ct/0.0002g 0.001ct/0.0002g 0.002ct/0.0004g 1-2.5 80
TXB222L 220 0.01 0.01 0.01 1-2 110
TXB422L 420 0.01 0.01 0.02 1-2 110
TXB622L 620 0.01 0.01 0.02 1-2 110
TXB621L 620 0.1 0. 1 0.1 1-2 110
TXB2201L 2200 0.1 0. 1 0.1 1-2 160
TXB4201L 4200 0.1 0. 1 0.2 1-2 160
TXB6201L 6200 0.1 0. 1 0.2 1-2 160
TXB6299L 6200 1 1 1 1-2 160
{:}{:tw}

您的位置: 主頁 > 儀器 > 天平

电动校准

马达驱动内砝码校准,只需一按键,可随时进行校准(TW系列)

简易设定

在测量过程中,只需一按键,可快速调节天平的响应性及稳定性。

菜单操作键

菜单操作键容易操作的按键设计

Windows直通视窗

测定数据可直接输到Windows应用程序上,无需安装其它软件。

可使用干电池操作(TXB系列)

省电功能

如果你在一定时间内不使用天平,天平电源(TXB系列)或显示屏(TX系列)会自动关闭。

型号 量程(g) 精度(g) 重复性(g) 线性(g) 平均响应时间(S) 称盘尺寸(mm)
TW223L 220 0.001 0.001 0.002 1-2.5 110
TW323L 320 0.001 0.001 0.002 1-2.5 110
TW423L 420 0.001 0.001 0.002 1-2.5 110
TX223L 220 0.001 0.001 0.002 1-2.5 110
TX323L 320 0.001 0.001 0.002 1-2.5 110
TX423L 420 0.001 0.001 0.002 1-2.5 110
TX2202L 2200 0.01 0.01 0.02 1-2.5 167×181
TX3202L 3200 0.01 0.01 0.02 1-2.5 167×181
TX4202L 4200 0.01 0.01 0.02 1-2.5 167×181
TWC323L 320ct/64g 0.001ct/0.0002g 0.001ct/0.0002g 0.002ct/0.0004g 1-2.5 80
TWC623L 620ct/124g 0.001ct/0.0002g 0.001ct/0.0002g 0.002ct/0.0004g 1-2.5 80
TXC323L 320ct/64g 0.001ct/0.0002g 0.001ct/0.0002g 0.002ct/0.0004g 1-2.5 80
TXC623L 620ct/124g 0.001ct/0.0002g 0.001ct/0.0002g 0.002ct/0.0004g 1-2.5 80
TXB222L 220 0.01 0.01 0.01 1-2 110
TXB422L 420 0.01 0.01 0.02 1-2 110
TXB622L 620 0.01 0.01 0.02 1-2 110
TXB621L 620 0.1 0. 1 0.1 1-2 110
TXB2201L 2200 0.1 0. 1 0.1 1-2 160
TXB4201L 4200 0.1 0. 1 0.2 1-2 160
TXB6201L 6200 0.1 0. 1 0.2 1-2 160
TXB6299L 6200 1 1 1 1-2 160
{:}

UW/UX Series – Top- loading Balance

{:en}

Your Location: Main > Equipment > Balance

  • Minimum display: 0.1g, 0.01g, 0.001g (Depends on model)
  • Maximum sample capacity: 220g to 8200g (Depends on model)
  • Automatic calibration can perform once ambient temperature variatons detected or at a selected time
  • Calibration report can be print with optional electronic printer
  • Customized combination of units can be done by user
  • Upper and lower limit can be set, display can continually indicate whether the sample is within the range, over range or under range

UW series (with built-in calibration weights)

Model UW220H UW420H UW620H UW820H UW1020H UW2200H UW4200H UW6200H UW420S UW820S UW4200S UW8200S
Capacity 220g 420g 620g 820g 1020g 2200g 4200g 6200g 420g 820g 4200g 8200g
Minimum Display 0.001g 0.01g 0.1g
Repeatability ≤0.001g ≤0.01g ≤0.008g ≤0.08g
Linearity ±0.002g ±0.003g ±0.02g ±0.01g ±0.1g
Response time 1.5 - 2.5s 0.7 - 1.2s
Pan Size (mm) approx. 108 x 105 170 x 180 108 x 105 170 x 180

UX series (standard model)

Model UX220H UX420H UX620H UX820H UX1020H UX2200H UX4200H UX6200H UX420S UX820S UX4200S UX8200S
Capacity 220g 420g 620g 820g 1020g 2200g 4200g 6200g 420g 820g 4200g 8200g
Minimum Display 0.001g 0.01g 0.1g
Repeatability ≤0.001g ≤0.01g ≤0.008g ≤0.08g
Linearity ±0.002g ±0.003g ±0.02g ±0.01g ±0.1g
Response time 1.5 - 2.5s 0.7 - 1.2s
Pan Size (mm) approx. 108 x 105 170 x 180 108 x 105 170 x 180
{:}{:zh}

您的位置: 主页 > 仪器 > 天平

GLP/GMP/ISO校准记录校准记录可以有时间、日期,符合GLP/GMP/ISO要求。

合格判别功能

预先设定上下限值,按试样重量显示合格、过量、不足。

PSC 全自动内校(UW系列)

当温度发生变化,天平会自动校准

Clock-CAL全自动内校(UW系列)

在预定的时间,天平会自动校准

Windows直通视窗

测定数据可直接输到Windows应用程序上,无需安装其它软件。

自动打印

测定数据可自动打印输出

如果您要把“Windows直通视窗“用在”Windows  7“、”Windows VISA “或者USB输出中,可联系我们当地代理商。

背光灯

单位转换及个数测定功能

测量单位多达22种,包括g、mg、kg、ib、oz等。个数测定可操作。

型号 量程(g) 精度(g) 重复性(g) 线性(g) 平均响应时间(S) 称盘尺寸(mm)
UW220H 220 0.001 0.001 0.002 1.5-2.5 108×105
UW420H 420 0.001 0.001 0.002 1.5-2.5 108×105
UW620H 620 0.001 0.001 0.002 1.5-2.5 108×105
UW820H 820 0.001 0.001 0.002 1.5-2.5 108×105
UW1020H 1020 0.001 0.001 0.002 1.5-2.5 108×105
UW2200H 2200 0.01 0.01 0.002 1.5-2.5 170×180
UW4200H 4200 0.01 0.01 0.02 1.5-2.5 170×180
UW6200H 6200 0.01 0.01 0.02 1.5-2.5 170×180
UW420S 420 0.01 0.008 0.01 0.7-1.2 108×105
UW820S 820 0.01 0.008 0.01 0.7-1.2 108×105
UW4200S 4200 0.1 0.08 0.1 0.7-1.2 170×180
UW8200S 8200 0.1 0.08 0.1 0.7-1.2 170×180
UX220H 220 0.001 0.001 0.002 1.5-2.5 108×105
UX420H 420 0.001 0.001 0.002 1.5-2.5 108×105
UX620H 620 0.001 0.001 0.002 1.5-2.5 108×105
UX820H 820 0.001 0.001 0.002 1.5-2.5 108×105
UX1020H 1020 0.001 0.001 0.002 1.5-2.5 108×105
UX2200H 2200 0.01 0.01 0.002 1.5-2.5 170×180
UX4200H 4200 0.01 0.01 0.02 1.5-2.5 170×180
UX6200H 6200 0.01 0.01 0.02 1.5-2.5 170×180
UX420S 420 0.01 0.008 0.01 0.7-1.2 108×105
UX820S 820 0.01 0.008 0.01 0.7-1.2 108×105
UX4200S 4200 0.1 0.08 0.1 0.7-1.2 170×180
UX8200S 8200 0.1 0.08 0.1 0.7-1.2 170×180
{:}{:tw}

您的位置: 主頁 > 儀器 > 天平

GLP/GMP/ISO校准记录校准记录可以有时间、日期,符合GLP/GMP/ISO要求。

合格判别功能

预先设定上下限值,按试样重量显示合格、过量、不足。

PSC 全自动内校(UW系列)

当温度发生变化,天平会自动校准

Clock-CAL全自动内校(UW系列)

在预定的时间,天平会自动校准

Windows直通视窗

测定数据可直接输到Windows应用程序上,无需安装其它软件。

自动打印

测定数据可自动打印输出

如果您要把“Windows直通视窗“用在”Windows  7“、”Windows VISA “或者USB输出中,可联系我们当地代理商。

背光灯

单位转换及个数测定功能

测量单位多达22种,包括g、mg、kg、ib、oz等。个数测定可操作。

型号 量程(g) 精度(g) 重复性(g) 线性(g) 平均响应时间(S) 称盘尺寸(mm)
UW220H 220 0.001 0.001 0.002 1.5-2.5 108×105
UW420H 420 0.001 0.001 0.002 1.5-2.5 108×105
UW620H 620 0.001 0.001 0.002 1.5-2.5 108×105
UW820H 820 0.001 0.001 0.002 1.5-2.5 108×105
UW1020H 1020 0.001 0.001 0.002 1.5-2.5 108×105
UW2200H 2200 0.01 0.01 0.002 1.5-2.5 170×180
UW4200H 4200 0.01 0.01 0.02 1.5-2.5 170×180
UW6200H 6200 0.01 0.01 0.02 1.5-2.5 170×180
UW420S 420 0.01 0.008 0.01 0.7-1.2 108×105
UW820S 820 0.01 0.008 0.01 0.7-1.2 108×105
UW4200S 4200 0.1 0.08 0.1 0.7-1.2 170×180
UW8200S 8200 0.1 0.08 0.1 0.7-1.2 170×180
UX220H 220 0.001 0.001 0.002 1.5-2.5 108×105
UX420H 420 0.001 0.001 0.002 1.5-2.5 108×105
UX620H 620 0.001 0.001 0.002 1.5-2.5 108×105
UX820H 820 0.001 0.001 0.002 1.5-2.5 108×105
UX1020H 1020 0.001 0.001 0.002 1.5-2.5 108×105
UX2200H 2200 0.01 0.01 0.002 1.5-2.5 170×180
UX4200H 4200 0.01 0.01 0.02 1.5-2.5 170×180
UX6200H 6200 0.01 0.01 0.02 1.5-2.5 170×180
UX420S 420 0.01 0.008 0.01 0.7-1.2 108×105
UX820S 820 0.01 0.008 0.01 0.7-1.2 108×105
UX4200S 4200 0.1 0.08 0.1 0.7-1.2 170×180
UX8200S 8200 0.1 0.08 0.1 0.7-1.2 170×180
{:}

BL Series – Top- loading Balance

Your Location: Main page > Equipment > Balance

  • Minimum display: 0.01g, 0.001g (Depends on model)
  • Maximum sample capacity: 220g to 3200g (Depends on model)
  • High resolution balance with quick response
  • High stability even the environment is not ideal for precision weighing
  • Analog bar graph display able to show remaining weighing capacity
  • Protective in-use cover can be added for measurement
  • Able to convert into various of units
  • Bright LCD display
Model Capacity Minimum display Pan size (mm)
BL220H 220g 0.001g 100 x 100
BL320H 320g 0.001g 100 x 100
BL2200H 2200g 0.01g 160 x 124
BL3200H 3200g 0.01g 160 x 124
BL3200HL 3200g 0.01g 160 x 124
BL320S 320g 0.01g 100 x 100
BL620S 620g 0.01g 160 x 124
BL3200S 3200g 0.1g 160 x 124

BW-K/BX-K Series- High precision platform Balance

Your Location: Main page > Equipment > Balance

The patented UniBloc (OPF) sensor achieves high-performance, compact size, and durability at the same time. Shimadzu introduced this wire-cut block sensor to high-precision platform balances in 1989. Combination of low-profiled body and large pan is for operator comfort during bulk weighing.

  • Minimum display: 1g, 0.1g (Depends on model)
  • Maximum sample capacity: 12kg to 52kg (Depends on model)
  • Simple structure and overload protection mechanism results in maximum durability.
  • Sensitivity guaranteed
  • Equipped with built-in calibration weight (BW-K Series only)
  • Upper and lower limit can be set, display can continually indicate whether the sample is within the range, over range or under range

BW-K (with built-in calibration weights)

Model Capacity Minimum display Pan size (mm)
BW12KH 12kg 0.1g 345 x 250
BW22KH 22kg 0.1g 345 x 250
BW32KH 32kg 0.1g 345 x 250
BW32KS 32kg 1g 345 x 250
BW52KS 52kg 1g 345 x 250

BX-K (Standard)

Model Capacity Minimum display Pan size (mm)
BX12KH 12kg 0.1g 345 x 250
BX22KH 22kg 0.1g 345 x 250
BX32KH 32kg 0.1g 345 x 250
BX32KS 32kg 1g 345 x 250
BX52KS 52kg 1g 345 x 250



MOC-120H Moisture Analyzer

{:en}

Your Location: Main > Equipment > Balance

Accurate moisture measurement with new weight sensor: UniBloc

The moisture content of a variety of samples can be measured using an array of drying modes. The drying status can be seen at-a-glance with the fluctuation range display. Active in a variety of fields (cereals, starch, flour, noodles, brewed products, sea foods and marine products, meat products, spices, sweets, dairy products, dried foods, vegetable oils and other food articles; pharmaceuticals; ores; cokes; glass materials; cement; chemical fertilizers; pulp and paper; cotton; various fabrics and other industrial goods); enabling measurement of samples (cereals, foods, and chemical products) under various conditions (powder, particles, paste, and liquid).

Large Pan

A large sample pan (130mm diameter) enables a large amount of sample to be placed evenly in a thin layer. This results in accurate and fast measurements with minimal drying non-uniformities.

Long-life heater

A mid-wave infrared quartz heater provides effective drying without interference for a wide range of samples. In addition to the excellent drying performance, it offers a long operational life of 20,000 to 30,000 hours.

UniBloc sensor

The internal precision weighing balance is engineered with a Shimadzu UniBloc cell. The mechanism provides excellent stability and a long operational life against repeated temperature changes, enabling easy measurements down to 0.001g.

Moisture vaporization monitoring

The moisture vaporization rate is monitored and can be visually seen on a bar graph display. This is useful to know as the measurement nears completion. It updates every 30 seconds.

Three drying modes besides standard drying mode

Rapid drying mode

First dries with the highest temperature for the specified period, then shifts to the specified temperature, thus shortening measurement time.

Slow drying mode

Mildly heats samples that may solidify in the surface or samples that reduce under high temperature.

Step drying mode

Allows changing drying conditions step by step. This feature is useful when measuring samples that contain a large amount of water (up to 5 steps).

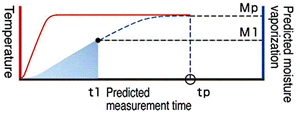

Predictive measuring mode

With preparatory measurements of the sample, the final result is predicted from the drying process. As a result, it saves a fair amount of time during repeated measurements.

Features:

  • Minimum display: 0.001g
  • Maximum sample capacity: 120g
  • Moisture content measurement range: 0.01% to 100%
  • Temperature range: 30°C to 180°C
  • Designed to set large amount of sample on the pan (1300mm diameter)
  • Equipped with mid-wave infrared quartz heater and able to operate up to 30,000 hours
  • Moisture vaporization rate is monitored and can be seen on the display
  • Sample drying process can be done in 4 ways (Rapid, Slow, Step drying and Standard drying)

Specifications:

Model MOC-120H (#321-63300-10)
Measuring method Heat drying and weight loss
Sample pan size 130mm dia
Minimum display in weighing 0.001g
Measurement range of moisture content 0.01% to 100.00%
Moisture content minimum display 0.01%
Sample capacity 120g
Measurement modes Automatic or Timed ending modes,
Standard, Rapid, Slow and Step drying
modes, Predictive Measuring mode
Drying heater Mid-wave infrared quartz heater
Setting temperature range 30 to 200°C by 1°C increments
(Sample position temperature)
Dimensions 220W × 415D × 190H (mm)
Weight 4.5 kg
Operational temperature and humidity range 5 to 40°C, 85% RH or lower
Power requirements AC 100 to 120 / 220 to 240 V, 640 W maximum
Standard accessories Sample pan 2 pcs, Sample pan handler 2 pcs,
Aluminum sheet 20 pcs, Spoon, Spatula
Stored procedures 10
{:}{:zh}

您的位置: 主页 > 仪器 > 天平

采用新型质量传感器“Uni Bloc”
准确的水分率自动测定

· 采用宽称量盘(130mm)
可薄而均匀地装载多量试样,快速进行精密的干燥偏差小的测定。
· 采用对广范围的试样都具有出色干燥率的中波红外线石英加热器 可达到理想的干燥状态,而且使用寿命长(20.000~30.000小时)。
· 在测定心脏部的天平部分采用“Uni Bloc”
不易受到因温度变化而造成的影响,可轻松地测量至0.001g单位。
· 测定方式可通过自动停止、时间停止2个停止方式与标准、快速、慢速、分段等干燥方式的组合选择9种方式。
而且每个试样通过测定方式与测量温度监测范围等测定条件相组合,总计有10种测定模式可预先登录,可立即设定适合试样的测定模式。
· 配备可在测定中随时监测质量变化量的模拟条形图的变动范围显示。
可目视确认干燥状况,便于推测结束时间。
· 内装岛津独自的“直通视窗”功能
可简单地将测定中的值调入Excel等。数值调入Excel等后,可使用数值计算、绘图等功能,自由自在地进行数据处理。连接只需1根RS232C电缆,无需接口的连接,软件的安装等。
· 装载独特的自动去皮功能
边进行天平的自动调零边测定的独特方式。即使长时期测定,也可通过零点漂移校正进行极为准确的测定。
· 配备对测定值的偏差校正功能。
可将测定结果与使用其他装置或方式测定数据统一。
· 采用带背灯的大型液晶显示器,便于在暗处操作。

型号(P/N)

MOC-120H

(321-63300)

测定方式 红外线加热干燥质量测定方式
称量盘尺寸

30mm

称量部最小显示值

0.001g

水分率测定范围

0.01%~100.00%

水分率最小显示位

0.01%

最大试样量

120g

测定方式 自动停止、时间停止、快速干燥、慢速干燥、分段干燥、预测(比较)测定
干燥热源 中波长红外线石英加热器
温度设定范围

30~180℃(步距1℃)

主机尺寸·重量

220W×415D×190H(mm),4.5kg

工作温湿度范围

5~40℃,85%RH以下

所需电源

AC100~120/220~240V,最大640W

附件 试样盘×2个,盘托、防风具、试样盘夹、铝片×20张
{:}{:tw}

您的位置: 主頁 > 儀器 > 天平

采用新型质量传感器“Uni Bloc”
准确的水分率自动测定

· 采用宽称量盘(130mm)
可薄而均匀地装载多量试样,快速进行精密的干燥偏差小的测定。
· 采用对广范围的试样都具有出色干燥率的中波红外线石英加热器 可达到理想的干燥状态,而且使用寿命长(20.000~30.000小时)。
· 在测定心脏部的天平部分采用“Uni Bloc”
不易受到因温度变化而造成的影响,可轻松地测量至0.001g单位。
· 测定方式可通过自动停止、时间停止2个停止方式与标准、快速、慢速、分段等干燥方式的组合选择9种方式。
而且每个试样通过测定方式与测量温度监测范围等测定条件相组合,总计有10种测定模式可预先登录,可立即设定适合试样的测定模式。
· 配备可在测定中随时监测质量变化量的模拟条形图的变动范围显示。
可目视确认干燥状况,便于推测结束时间。
· 内装岛津独自的“直通视窗”功能
可简单地将测定中的值调入Excel等。数值调入Excel等后,可使用数值计算、绘图等功能,自由自在地进行数据处理。连接只需1根RS232C电缆,无需接口的连接,软件的安装等。
· 装载独特的自动去皮功能
边进行天平的自动调零边测定的独特方式。即使长时期测定,也可通过零点漂移校正进行极为准确的测定。
· 配备对测定值的偏差校正功能。
可将测定结果与使用其他装置或方式测定数据统一。
· 采用带背灯的大型液晶显示器,便于在暗处操作。

型号(P/N)

MOC-120H

(321-63300)

测定方式 红外线加热干燥质量测定方式
称量盘尺寸

30mm

称量部最小显示值

0.001g

水分率测定范围

0.01%~100.00%

水分率最小显示位

0.01%

最大试样量

120g

测定方式 自动停止、时间停止、快速干燥、慢速干燥、分段干燥、预测(比较)测定
干燥热源 中波长红外线石英加热器
温度设定范围

30~180℃(步距1℃)

主机尺寸·重量

220W×415D×190H(mm),4.5kg

工作温湿度范围

5~40℃,85%RH以下

所需电源

AC100~120/220~240V,最大640W

附件 试样盘×2个,盘托、防风具、试样盘夹、铝片×20张
{:}

MOC63u Moisture Analyzer

Your Location: Main > Equipment > Balance

Trust the MOC63u for Both Speedy and Accurate Measurements

Moisture ratio measurements are indispensable for quality control and as checks of raw materials in a variety of industries including food products, chemistry, and pharmaceuticals.
The MOC63u electronic moisture analyzer is capable of accurate, quick and easy moisture ratio measurements. Just place the sample in the sample pan and close the cover to start the measurement. This instrument can accommodate virtually any sample, and will contribute to enhanced user productivity.

Customers in the Food Product Industry
•Research and development of food products, drinks, and food additives
•Inspections of food products manufacturing processes and products
•Measurements of raw materials (such as rice, malt, tea leaves, and corn starch)

Customers in the Pharmaceuticals and Cosmetics Industries
•Pharmaceuticals research and development (pills, granules, capsules, and ointments)
•Cosmetics research and development (such as hair products, face lotions, and soap)
•Inspections of pharmaceutical and cosmetic manufacturing processes and products

Customers in Water Supply and Environmental Fields
•Moisture ratio measurements and inspections of sludge
•Moisture ratio measurements and inspections of soil
•Moisture ratio measurements and inspections of waste matter

Customers in the Chemical Industry
•Research and development of samples, and inspection of products (solids, powders, pellets, lms, and liquid samples)
•Moisture ratio measurements for plastics, rubbers, paints, pesticides, and functional materials

Customers in Metals and Raw Materials Industries
•Moisture ratio measurements of raw materials (such as iron ore)
•Moisture ratio measurements of metals (such as metal powders)
•Moisture ratio measurements of lumber, paper, ber, and lime

Customers in the Automotive and Electrical Machinery Industries
•Moisture ratio measurements of plastic pellets and plastic parts
•Moisture ratio measurements of toner
•Moisture ratio measurements of foundry sand

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Main Features:

Simple Operation
Select the automatic starting mode, place the sample, and close the heater cover to start the measurements. The preparation for measurement is so simple that you do not even have to press the start key.

The Sample Pan Size Is a Spacious 95 mm Dia.
Generally, the wider, thinner, and more uniformly the sample is spread, the more precise the measurement. Uniform heating is provided by adopting a cleverly shaped reector (patent pending).

A Wealth of PC Connection Functions
A USB connector is built in as standard for connecting to a PC. It can also be used in conjunction with the WindowsDirect function (patented).
Note) For Windows Vista, Windows 7, and USB port connections, check the Shimadzu website, or contact your Shimadzu representative.

• Equipped with the UniBloc aluminum block, to provide accurate moisture measurements.
• Equipped with a high output halogen heater capable of rapid heating.
• Wide observation window to allow checks of sample status during heating.
• 60 g capacity/0.001 g minimum display
• The temperature on the pan can be set between 50 ˚C and 200 ˚C.
• Can store 10 sets of measurement conditions and 100 data items.
• Cleaning and maintenance are easy.
• Liquid and paste samples can also be measured using fiberglass sheets.
• Energy saving design (32 % reduction in comparison to previous Shimadzu models)

Specifications:

Model MOC63u (#321-71500-12)
Capacity Max 60g
Min 0.02g
Minimum readability 0.001g
0.01/0.1% (Selectable)
Repeatability 0.15% (2g)
0.05% (5g)
0.02% (10g)
Drying Heater Straight type halogen heater
Power 400W
Temperature range setting 50-200°C (1°C increments)
(There is a time restriction when exceeding 180°C.)
Display LCD with backlight
Pan size Ø95mm
Dimensions (WxDxH) mm 202 × 336 × 157
Weight Approx 4.2kg
Operational temperature and humidity range 5 to 40°C, 85%RH or lower
Measurement modes Standard (Easy start/Automatic end/Timed end)
Rapid drying
(Easy start/Automatic end/Timed end)
Slow drying
(Easy start/Automatic end/Timed end)
Step drying
(Easy start/Automatic end/Timed end)
Timer setting 1-240 minutes or continuous
(max 12 hours)
Interface RS-232C (9-pin connector) I/O port
USB port
Measurement conditions
data memory
10
Data memory 100
Temperature calibration kit Option
Standard accessories Sample pans (3 aluminum pans),
pan supporter, windbreak,
Heater insulation plate,
aluminum pans (50 disposable pans),
Sample pan handler, power cable,
spare fuses (2),
protective display cover, hexagonal wrench

Printers (EP-110/EP-100)

{:en}

Your Location: Main > Equipment > Balance

Built-In Clock

Enables printing time and date information even with a balance that doesn't have a clock function.

Enhanced Support for ISO/GLP

EP-100 can output time/signature information. In addition to this information, EP-110 can output other information based on your demands together with measured values. See samples below for details.

OLED Dot Matrix Display (EP-110 only)

Offers easy-to-read, brightly illuminated OLED display.

Automatically Set

Automatically sets the appropriate communication with a balance. An operator doesn't have to worry about its setting.

EP-110 Provides further applications

  • Pipette calibration
    Calibrate capacity of pipette and flask
  • User-defined calculation
    Operator can set coefficients
    (handy for converting result to local unit)
  • Tare/Net/Gross weight printing
    Print out Tare/Net/Gross weight separately
  • SUM mode
    Print out the total values of samples
  • Averaging mode
    Print out the average of samples
  • Formulation mode
    Print out each sample's weight independently when blending samples
  • Comparator mode
    Print out result whether weight of sample is within target range
  • Interval printing mode
    Print out current weight at a regular interval
Model EP-100 EP-110
Display - OLED 128 x 64 Dot Matrix Display
Protected Date Setting - Prevents unintended changes of time and date setting.
Printing

Method: 8-pin reciprocating impact dot matrix

Speed:
Approx. 1.7 lines/sec. Printer head life;
1 million linesCharacter size;
Approx. W1.7 mm × H2.6 mm.
Interface RS-232 DB9
Power Supply

AC adapter:
Input 100 to 240 V AC, 50/60 Hz; Output 12 V DC /1500 mA

Power consumption:
8 W (while printing)Standby power
0.5 W (when not printing)
Installation Environment Temperature 5 to 45 °C, humidity 10 to 80 % No condensation
Compatible balance models AU, AT, UW/A95:C102UX, TW/TX, TXB, BW-K/BX-K, ELB, AW/AX/AY series, MOC63u
{:}{:zh}

您的位置: 主页 > 仪器 > 天平

  • ♦ 内置时钟功能
  • ♦ 符合ISO/GMP/GLP法规要求
  • ♦ 液晶显示屏(EP-110)
  • ♦ 自动设定功能

可用于以下型号: 电子天平AP,AU,AT,UW/UX,TW/TX,TXB系列;电子水分仪MOC63u。

型号 EP-100 EP-110
显示屏 - 液晶显示屏(128mmx64mm)
数据保护功能 - 防止意外更改时间或其他参数
打印 方法:针式打印;速度:约1.7行/秒;打印头寿命:100万行;字体大小:约1.7mm(W)x2.6mm(H)
接口 RS232 D89
电源 交流电:AC 100-20/220-240,50/60Hz,DC12,1.5A 功率:8W(打印时);待机功率:1.5W(不打印时)
安装环境 温度5~45℃ 湿度10~80%
{:}{:tw}

您的位置: 主頁 > 儀器 > 天平

  • ♦ 内置时钟功能
  • ♦ 符合ISO/GMP/GLP法规要求
  • ♦ 液晶显示屏(EP-110)
  • ♦ 自动设定功能

可用于以下型号: 电子天平AP,AU,AT,UW/UX,TW/TX,TXB系列;电子水分仪MOC63u。

型号 EP-100 EP-110
显示屏 - 液晶显示屏(128mmx64mm)
数据保护功能 - 防止意外更改时间或其他参数
打印 方法:针式打印;速度:约1.7行/秒;打印头寿命:100万行;字体大小:约1.7mm(W)x2.6mm(H)
接口 RS232 D89
电源 交流电:AC 100-20/220-240,50/60Hz,DC12,1.5A 功率:8W(打印时);待机功率:1.5W(不打印时)
安装环境 温度5~45℃ 湿度10~80%
{:}

Bucket set for Animal Balance

Your Location: Main page > Equipment > Balance

Dedicated software brings quick and reliable results of live animal weighing.

Upon removing the weighed animal, the weight of remaining feces and output are automatically tared off, and the balance presents zero for the next animal.
Order a standard balance plus one of the applicable animal bucket sets.

Model Catalog No. Balance Series Reduced Capacity (approx.)
Small Animal Bucket set 321-62150 UW/UX
(Capacity 2200g or more)
Bottom 110dia,
Top 200dia,
Height 130
Medium-size Animal Bucket set*1 321-62545-03 BX-K Bottom 305 x 215,
Top 377 x 245,
Height 215
321-62545-04 BW-K Bottom 305 x 215,
Top 377 x 245,
Height 215
Large Animal Bucket set*2 321-62545-01 BX-K
(Capacity 22kg or more)
Bottom 335 x 245,
Top 445 x 395,
Height 345
321-62545-02 BW-K
(Capacity 22kg or more)
Bottom 335 x 245,
Top 445 x 395,
Height 345

*1 Capacity is reduced about 2kg
*2 Capacity is reduced about 6kg

STABLO-AP Static Electricity Remover

{:en}

Your Location: Main > Equipment > Balance

STABLO-AP provides reliable measurement by removing static electricity.

  • AC corona discharge method enables excellent ion polarity balance
  • Wide angle static removal
  • High performance maintained over a long period of use
  • No inverse charging
  • Shimadzu's unique 2-WAY Ionizer: hand-held / on stand

Static Electricity Removal by Ion Irradiation

With the high-frequency AC corona discharge method, Shimadzu’s STABLO-AP ionizer provides a stable ion balance and excellent static removal performance on samples and containers. Precision weighing work becomes remarkably efficient. Electrodes are safely housed inside the unit.

AC Method Produces Excellent Ion Balance

AC method: AC voltage is applied on the discharge needle and a well-balanced mixture of positive/negative ions is emitted in rapid alternation from one electrode.

DC method: DC voltage is applied to a couple of electrodes. One is positive and the other is negative. Each electrode emits ions of one polarity only. An effective static removal angle is limited if the two electrodes are distanced. As electrodes deteriorate, initial ion balance is lost.


Applications:

On Stand
While being neutralized, charge-prone samples can be injected into a container without being scattered. You can also easily neutralize spatulas and sample bottles in the midst of the work flow.
Samples can be neutralized before weighing measurements.



Hand Held
You can neutralize sample static electricity during weighing measurements.
Move the unit freely to any position where static electricity is a concern and then neutralize it.





Specifications:

Ion Generation Method AC corona discharge method
Ion Balance ±10V
Effective Static Removal Range 50 - 400 mm from the outlet
Static Elimination Time (approx.) 1 second (Typical value) (from ±1000 V to ±100 V)
Ozone Concentration 0.06 ppm
Electrode Probes Tungsten (durability: 30,000 hours)
Weight Approx. 710 g (Main unit: 395 g, Stand: 315 g)
Operating Temperature and Humidity 0 ºC to + 40 ºC, 25 % RH to 85 % RH (non-condensing)
Rated Electric Power Supply DC 24 V, 1.0 A
{:}{:zh}

您的位置: 主页 > 仪器 > 天平

可大幅提升消除静电效率的静电消除器上市了!

消除称量过程中产生的静电,获得可靠的测量结果。
可有效消除粉末样品、药品包装用纸、容器等产生的静电。

  • 卓越的静电消除能力!(采用可确实消除静电的AC方式)
  • 宽大的离子出口可实现无风快速除电(除电时间仅为原来的1/10)
  • 可长期稳定使用,不产生逆带电。
  •  设计小巧,可灵活放置。
  •  附带岛津特有的2WAY支架,可手持使用。
{:}{:tw}

您的位置: 主頁 > 儀器 > 天平

可大幅提升消除静电效率的静电消除器上市了!

消除称量过程中产生的静电,获得可靠的测量结果。
可有效消除粉末样品、药品包装用纸、容器等产生的静电。

  • 卓越的静电消除能力!(采用可确实消除静电的AC方式)
  • 宽大的离子出口可实现无风快速除电(除电时间仅为原来的1/10)
  • 可长期稳定使用,不产生逆带电。
  •  设计小巧,可灵活放置。
  •  附带岛津特有的2WAY支架,可手持使用。
{:}
